QSFP14 SFP Cage Connector 2 Port 1x2 Ganged 40G Ethernet Applied With EMI Gasket

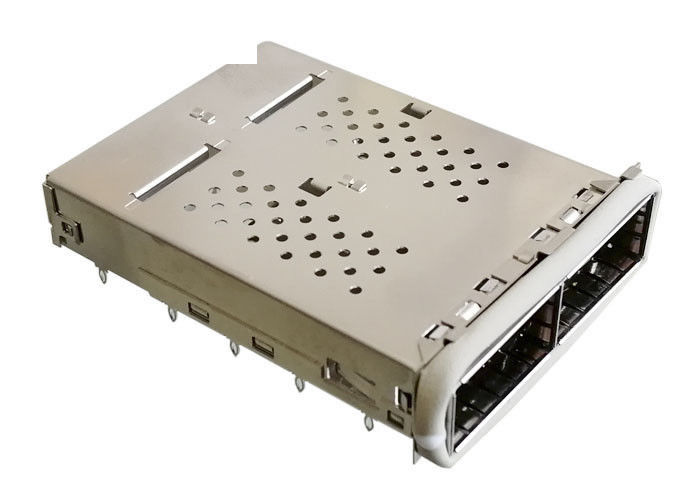

2 Port QSFP14 Cage 1x2 Ganged Cage with EMI Gasket used for 56G Ethernet

1. QSFP Overview:

The Quad Small Form-factor Pluggable (QSFP) is a compact, hot-pluggable transceiver used for data communications applications. The form factor and electrical interface are specified by a multi-source agreement (MSA) under the auspices of the Small Form Factor Committee. It interfaces networking hardware (such as servers and switches) to a fiber optic cable or active or passive electrical copper connection. It is an industry format jointly developed and supported by many network component vendors, allowing data rates from 4x1 Gb/s for QSFP and 4x10 Gbit/s for QSFP+ and to the highest rate of 4x28 Gbit/s known as QSFP28 used for 100 Gbit/s links.

produce QSFP Cage which can be with or without integrated connector ( electrical interface) ;

Users need to transmit the Optical Signal or Electrical Signal at a distance by high speed, the Fiber , QSFP Transceiver, electrical interface and QSFP Cage are needed;

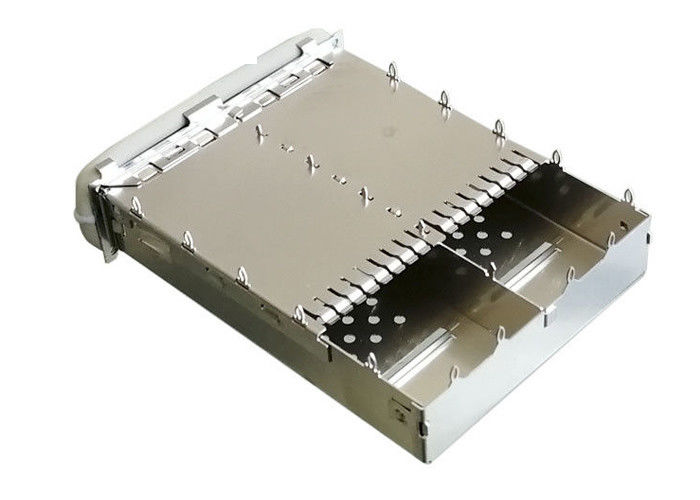

QSFP cage actually is an Shielding Cage, for EMI, one Piece Copper Alloy Materials, with many Heat Dissipation hole, Mounting Pin ( Press Fit PIN ) , Light pipes and Heat sink.

2. QSFP Cage ( 48003-00N011 ) Structure:

3.  QSFP Cage ( 48003-00N011 ) Applications:

• QSFP Connector / QSFP Transceiver
• Servers
• Storage
• Telecommunications
• Switches
• Telecommunications hardware
• Data/Communications
• High-end servers
• Networking
• Fibre Channel and Gigabit Ethernet
• Networking equipment
• Router/Switch

4.  Advantages:

• Fast Response, Professional R&D Engineers, Positive Service Team, Ensure all process effective and well-organized;
• 20 years experiences in Variety Connectors
• 1500 Employees
• 58 R&D Engineers.
• 22000 square meters Factory
• 20kk ports / month Capacity
• We support Costom Service;
• Our products are compliant with RoHS, REACH and UL certification
• Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
• 20KK Prots / Month Capacity
• ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
• We have our Own Hardware Mold and Plastic Mold
• Has 3 LS-WEDM Machines
• Has 12 WEDM Machines and 8 CNC Machines
• Has 20 Grinding Machines and 12 Electrical Discharge Machines
• Has 30 Stamping Machines
• Has 55 Plastic Injection Machines
• Has Automatic Assembly Workshops​

5.  Customization Service

• Support to make Integrated SFP Connector with EMI Cages, isolated SFP Connector, or Isolated SFP Cages
• The SFP Cage can be with 1 x n Ganged Structure, or 2 x n Stacked Structure
• SFP Cage can be with different heat dissipation Hole
• SFP Cage can be with Light pipes or without, Built in or on Cage top or buttom
• SFP Cage can be with Heat Sink or without, and the Heat sink with different Style
• SFP Cage can be with EMI Finger Spring or elastomeric Gasket
• Different Mount Typ, Press Fit or Solder Post and the Pin length can be customized

6. Mechnical Drawing

You can know the Demensions Details from Following Drawing
