EMI Tabs Single Port SFP28 Cage 18.75 mm For QSFP28 Connector

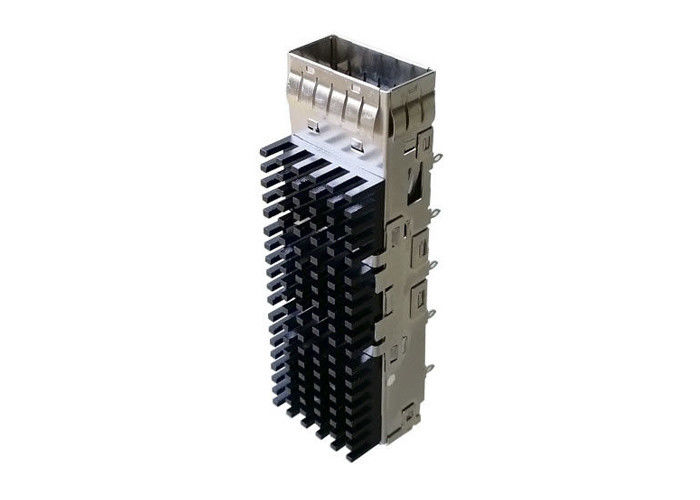

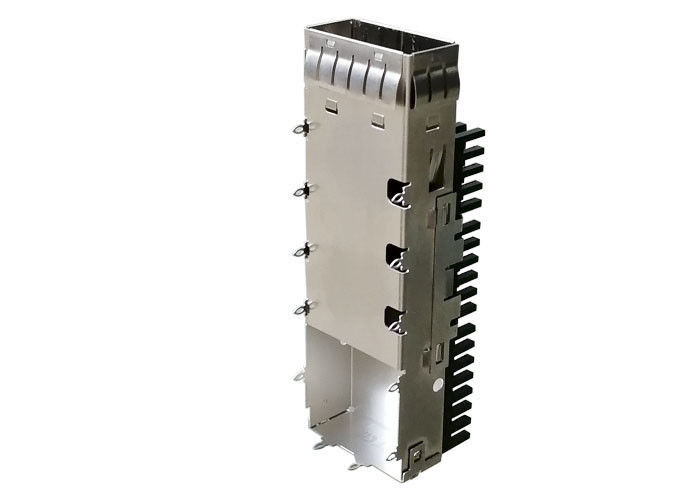

EMI Tabs Heat Sink Single Port SFP28 Cage 18.75 mm For QSFP28 Connector

Widely used in the networking, telecommunication and data centre industries. The next generation of high-speed I/O devices, supporting 40G to 100G Ethernet Application. The Press Fit copper alloy cages offer EMI spring or EMI gasket variants and are fully backward compatible with existing QSFP optical modules ( Transceiver ) and cable assemblies.

QSFP28 Transceivers are mainly used for 40G to 100G Ethernet Application, the compact design, low power consumption, and low cost make it the first option in 100G Ethernet Application;

QSFP28 Cage is Compatible with next Types of QSFP28 Transceiver ( Optical Module )

• 100GBASE-SR4 QSFP28 Transceiver
• 100GBASE-PSM4QSFP28 Transceiver
• 100GBASE-LR4 QSFP28 Transceiver
• 100GBASE-CWDM4 QSFP28 Transceiver

1. Features

• One-piece, stainless steel construction

• Low emission design via fold-back spring fingers – no openings for radiation to pass through

• Enhanced transceiver kick-out springs

• Simple and fast installation / removal

• Host board holes not damaged when cage is removed

• Mates with QSFP28 transceivers

• Connectors and cage available

• Available with single or multi-port (panel mount) cages

• Convenient kit with QSFP28 connector and cage

• 3D foot design for improved press-fit retention and contact to host board holes

• Press-fit or through-hole solder leads on cages

• Available individually or as a kit (SFPK Series)

• Heat transfer windows on all SFP cage surfaces

• Supports MSA compliant host board layouts and transceiver designs

2.  Customization Service

• The QSFP28 Cage can be with 1 x n Ganged Structure, or 2 x n Stacked Structure
• QSFP28 Cage can be with different heat dissipation Hole

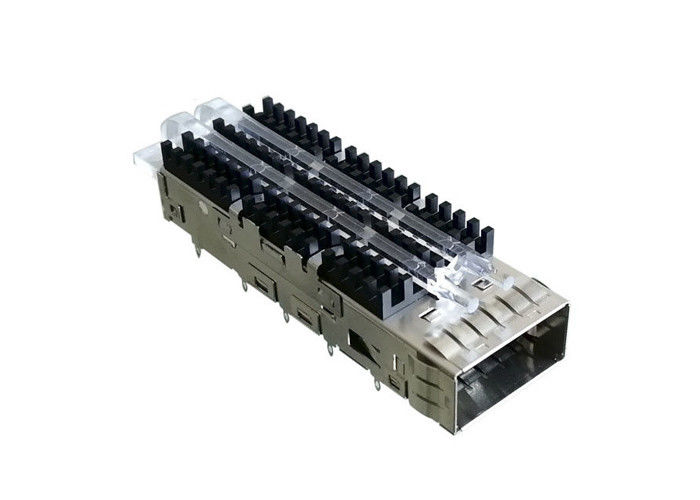

• QSFP28 Cage can be with Light pipes or without, Built in or on Cage top or buttom
• QSFP28 Cage can be with Heat Sink or without, and the Heat sink with different Style
• QSFP28 Cage can be with EMI Finger Spring or elastomeric Gasket
• Support to make Integrated QSFP28 Connector with EMI Cages, isolated QSFP28 Connector, or Isolated QSFP28 Cages
• Different Mount Typ, Press Fit or Solder Post and the Pin length can be customized

3.  QSFP28 Cage ( 49001-00N011 ) Structure:

• Single Port Width : 18.75 mm
• Single Port Height : 8.95 mm
• Stampled and Formed Metal Cage, with heat dissipation hole;
• Without Light Pipes, can be customized as required
• With Heat Sink, heat sink Material is Aluminum, with Black Oxide treatment on Surface
• Press Fit Mount Type, Can be customized as required
• Cage Material : Copper Alloy
• CLIP : Stailness Steel
• With EMI Tab Spring, provide better EMI shielding to the bezel
• 1 X 1 Single Port QSFP28 Cage, without Integrated SFP Connector
• QSFP28 Cage Length : 61.16 mm
• QSFP28 Cage Width : 19.46 mm
• QSFP28 Cage Height : 16.0 mm ( with Heat Sink )
• QSFP28 Cage Press Fit PIN Length: 2.05 mm

4. QSFP28 Cage ( 49001-00N011 ) Applications:

• Servers
• Storage
• Telecommunications
• Switches
• Telecommunications hardware
• Data/Communications
• High-end servers
• Networking
• Fibre Channel and Gigabit Ethernet
• Networking equipment
• Router/Switch
• QSFP28 Connector  / QSFP28 Transceiver

This is not a definitive list of applications for this product. It represents some of the more common uses.

5.  Advantages:

• 20 years experiences in Variety Connectors
• 1500 Employees
• 58 R&D Engineers.
• 22000 square meters Factory
• 20kk ports / month Capacity
• We support Costom Service;
• Our products are compliant with RoHS, REACH and UL certification
• Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
• 20KK Prots / Month Capacity
• ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification​
• We have our Own Hardware Mold and Plastic Mold
• Has 3 LS-WEDM Machines
• Has 12 WEDM Machines and 8 CNC Machines
• Has 20 Grinding Machines and 12 Electrical Discharge Machines
• Has 30 Stamping Machines
• Has 55 Plastic Injection Machines
• Has Automatic Assembly Workshops
• Fast Response, Professional R&D Engineers, Positive Service Team, Ensure all process effective and well-organized;

6.  QSFP28 Cage Advantages:

7. Learning More

QSFP transceivers are available with a variety of transmitter and receiver types, allowing users to select the appropriate transceiver for each link to provide the required optical reach over multi-mode or single-mode fiber. QSFP modules are commonly available in several different categories:

4 x 1 Gbit/s QSFP

The original QSFP document specified four channels carrying Gigabit Ethernet, 4GFC (FiberChannel), or DDR InfiniBand.

4 x 10 Gbit/s QSFP+

QSFP+ is an evolution of QSFP to support four 10 Gbit/sec channels carrying 10 Gigabit Ethernet, 10GFC FiberChannel, or QDR InfiniBand. The 4 channels can also be combined into a single 40 Gigabit Ethernet link. It is usually for the application of Data center, 40G Ethernet, Infiniband, and other communications standards.

4 x 14 Gbit/s QSFP+ (QSFP14)

The QSFP14 standard is designed to carry FDR InfiniBand, SAS-3. or 16G Fibre Channel

4 x 28 Gbit/s QSFP+ (QSFP28)

The QSFP28 standard is designed to carry 100 Gigabit Ethernet, EDR InfiniBand. or 32G Fibre Channel. This transceiver type is also used with direct-attach breakout cables to adapt a single 100GbE port to four independent 25 gigabit ethernet ports (QSFP28-to-4x-SFP28). Sometimes this transceiver type is also referred to as "QSFP100" or "100G QSFP" for sake of simplicity.

8. Mechnical Drawing

You can know the Demensions Details from Following Drawing
