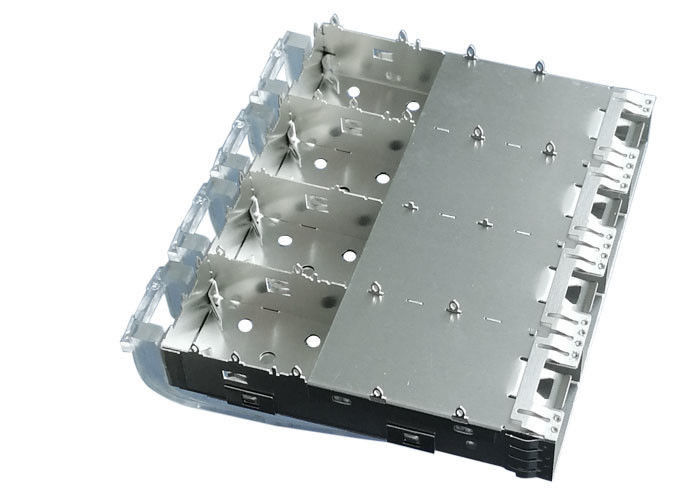

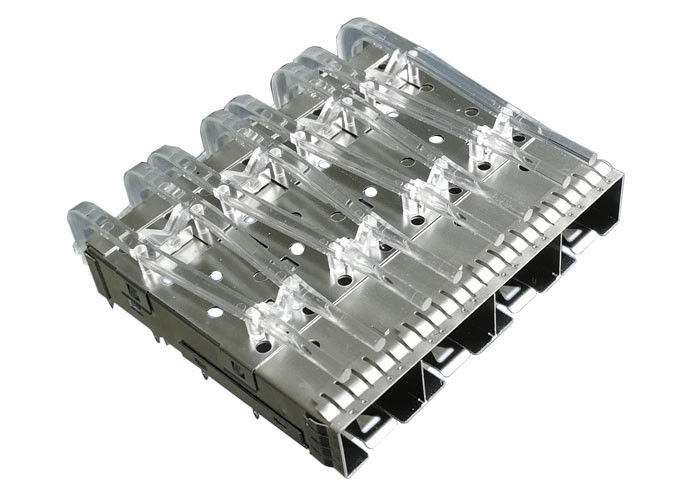

Stailness Steel CLIP SFP Cage Connector 4 Ports Light Pipe EMI Tab Spring

Light Pipe EMI Tab Spring SFP Cage Connector 4 Ports Stailness Steel CLIP

OUR is offering its cage for Small Form Factor Pluggable (SFP) transceivers with the most rigid mechanical design available on the market. The cage is designed for press fit applications in order to reduce high volume manufacturing effort. Externally bent bezel contact springs and one-piece construction enhance EMI performance.

SFP design is more Compact than  XFP, X2, EXNPAK, Cost also is lower, it is becoming more and more popular in Networking and Telecommunications Fields Who need higher transmission speed and longer transmission Distance;

1.  SFP Cage ( 47014-01N011 ) Structure:

• 1 x 4 Ganged SFP Cage
• SFP PLUS Cage Length : 56.7 mm
• SFP PLUS Cage Width : 57.45 mm
• SFP PLUS Cage Height : 14.1 mm
• SFP PLUS Press Fit PIN Length: 2.05 mm
• Stampled and Formed Metal Cage, with heat dissipation hole;
• With Light Pipes, Let the users know the link status
• Without Heat Sink, can be customized as required
• Press Fit Mount Type, Can be customized as required
• Cage Material : Copper Alloy
• CLIP : Stailness Steel
• With EMI Tab Spring, provide better EMI shielding to the bezel
• Light Pipe Material: Polycarbonate Color Clear

2. Specifications

3.  SFP CAGE Benifits:

• MT design packaged in tape and reel
• Ensures easy pick-and-place to the PCB

• Single port cages available in press-fit, solder-post and PCI (1°) versions; ganged cages available in press-fit version
• Enables use with various board thicknesses and assembly processes

• Press-fit tails accommodates belly-to-belly applications for single and ganged cages
• Ensures best use of PCB real estate

• Integrated light pipes for use with SMT Light Emitting Diode's (LED's)
• Provides port status and activity feedback to the user

• Modules oriented "belly-to-belly" when inserted
• Ease of removal of the module from the port

• Unique thumb latch
• Provides intuitive squeeze and pull-latching mechanism

• Available in 15 or 30µ" gold plating
• Accommodates cost and performance preferences

• Ganged cages have 360° elastomeric gaskets, spring fingers and multiple ground-pin locations
• Provides advanced EMI shielding to the bezel

• Elastomeric or metal gasket
• Two options for superior EMI protection

• Press-fit termination to PCB
• Eliminates soldering, lowering the applied cost and avoiding solder-related issues

• Hot-pluggable transceivers
• Allow insertion and removable of plug without powering down the system

• Zinc diecast backshells
• Provide 360° Electro Magnetic Interference (EMI) shielding

4. Features

• Available with single or multi-port (panel mount) cages

• Convenient kit with SFP connector and cage

• 3D foot design for improved press-fit retention and contact to host board holes

• One-piece, stainless steel construction

• Low emission design via fold-back spring fingers – no openings for radiation to pass through

• Enhanced transceiver kick-out springs

• Simple and fast installation / removal

• Host board holes not damaged when cage is removed

• Mates with SFP, SFP+, XFP, or ZENPAK transceivers

• Connectors and cage available

• Press-fit or through-hole solder leads on cages

• Available individually or as a kit (SFPK Series)

• Heat transfer windows on all SFP cage surfaces

• Supports MSA compliant host board layouts and transceiver designs

5.  SFP PLUS Cages Applications:

• Data/Communications
• High-end servers
• Networking
• Fibre Channel and Gigabit Ethernet
• Networking equipment
• Router/Switch
• Servers
• Storage
• Telecommunications
• Switches
• Telecommunications hardware

This is not a definitive list of applications for this product. It represents some of the more common uses.

6. Advantages:

• Fast Response, Professional R&D Engineers, Positive Service Team, Ensure all process effective and well-organized;
• 20 years experiences in Variety Connectors
• 1500 Employees
• 58 R&D Engineers.
• 22000 square meters Factory
• 20kk ports / month Capacity
• We support Costom Service;
• Our products are compliant with RoHS, REACH and UL certification
• Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
• 20KK Prots / Month Capacity
• ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
• We have our Own Hardware Mold and Plastic Mold
• Has 3 LS-WEDM Machines
• Has 12 WEDM Machines and 8 CNC Machines
• Has 20 Grinding Machines and 12 Electrical Discharge Machines
• Has 30 Stamping Machines
• Has 55 Plastic Injection Machines
• Has Automatic Assembly Workshops

​
