Elastomeric Gasket SFP Cage Connector Stacked 3.05 mm Customization Service

Elastomeric Gasket Sfp Port Connector Stacked 3.05 mm Press Fit Pin

OUR is offering its cage for Small Form Factor Pluggable (SFP) transceivers with the most rigid mechanical design available on the market. The cage is designed for press fit applications in order to reduce high volume manufacturing effort. Externally bent bezel contact springs and one-piece construction enhance EMI performance.

SFP design is more Compact than XFP, X2, EXNPAK, Cost also is lower, it is becoming more and more popular in Networking and Telecommunications Fields Who need higher transmission speed and longer transmission Distance;

1.  SFP + Cage Connector (47025-03M321) Structure:

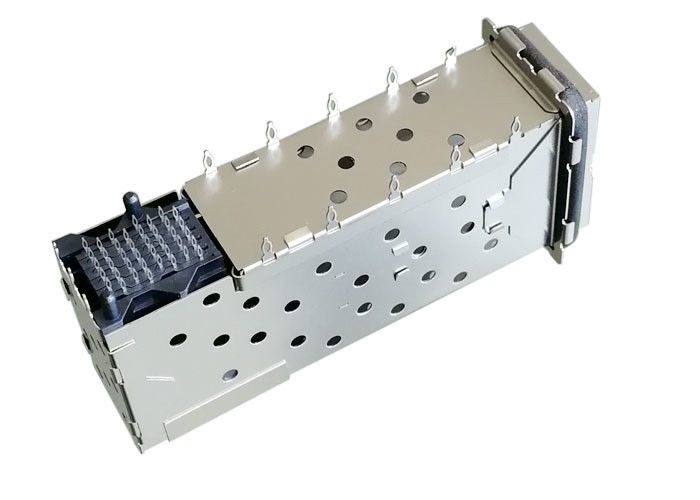

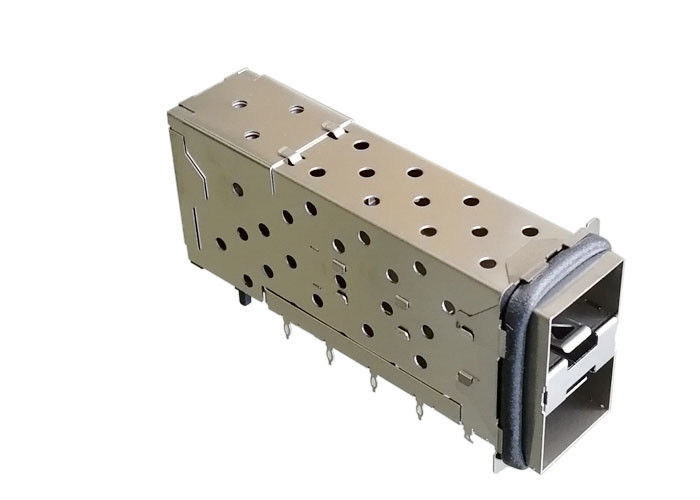

• 2 x 1 Stacked SFP plus Cage Connector, with Integrated SFP plus Connector
• SFP + Cage Length : 63.25 mm
• SFP + Cage Width : 19.7 mm
• SFP + Cage Height : 30.2 mm
• SFP + Press Fit PIN Length: 3.05 mm
• The Cage is Stampled and Formed Metal Cage, with heat dissipation hole;
• Without Light Pipes, can be customized as required
• Without Heat Sink, can be customized as required
• With Elastomeric, provide better EMI shielding to the bezel
• Press Fit Mount Type, Can be customized as required
• With 20 pin Integrated Connector
• Cage : Copper Alloy 0.25 mm
• Connector housing material is glass filled thermoplastic black Color, UL940 - V
• Connector Terminal: Phosphor Bronze
• Light Pipe : Polycarbonate Clear Color, UL940 - V
• Light Pipe Housing : PA46, Black, UL940 - V
• Finish: Terminals Contact Area Plated Gold
• Solder Terminal Area Plated Tin

2.Advantages:

• We have our Own Hardware Mold and Plastic Mold
• Has 3 LS-WEDM Machines
• Has 12 WEDM Machines and 8 CNC Machines
• Has 20 Grinding Machines and 12 Electrical Discharge Machines
• Has 30 Stamping Machines
• Has 55 Plastic Injection Machines
• Has Automatic Assembly Workshops
• Fast Response, Professional R&D Engineers, Positive Service Team, Ensure all process effective and well-organized;
• 20 years experiences in Variety Connectors
• 1500 Employees
• 58 R&D Engineers.
• 22000 square meters Factory
• 20kk ports / month Capacity
• We support Costom Service;
• Our products are compliant with RoHS, REACH and UL certification
• Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
• 20KK Prots / Month Capacity
• ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification

​

3.  Product Advantage

Key Features and Benefits, Performance and Flexibility:

IT has Variety Products:

SFP Cages, QSFP cages, SFP plus Cages, QSFP plus Cages, SFP28 Cage, QSFP28 Cages, etc. We can supply SFP Cage Separately, SFP connector Separately or SFP Cage + connector Combined together.

Heat Dissipation:

Our thermally enhanced solutions offer better front-to-back and back-to-front airflow through the cages, providing better heat dissipation for industry leading thermal performance.

Signal Quality:

To enhance signal quality, the SFP portfolio focuses on the latch-plate area to reduce EMI and avoid degradation of circuit performance and ensure compliance to standards. Products are offered in both an EMI spring and EMI elastomeric gasket versions to meet customer system requirements.

4. SFP PLUS Cages Applications:

• Networking equipment
• Router/Switch
• Data/Communications
• High-end servers
• Networking
• Servers
• Storage
• Telecommunications
• Switches
• Telecommunications hardware
• Fibre Channel and Gigabit Ethernet

This is not a definitive list of applications for this product. It represents some of the more common uses.

5. Customization Service

• The SFP Cage can be with 1 x n Ganged Structure, or 2 x n Stacked Structure
• SFP Cage can be with different heat dissipation Hole
• SFP Cage can be with Light pipes or without, Built in or on Cage top or buttom
• SFP Cage can be with Heat Sink or without, and the Heat sink with different Style
• SFP Cage can be with EMI Finger Spring or elastomeric Gasket
• Different Mount Typ, Press Fit or Solder Post and the Pin length can be customized
• Support to make Integrated SFP Connector with EMI Cages, isolated SFP Connector, or Isolated SFP Cages
