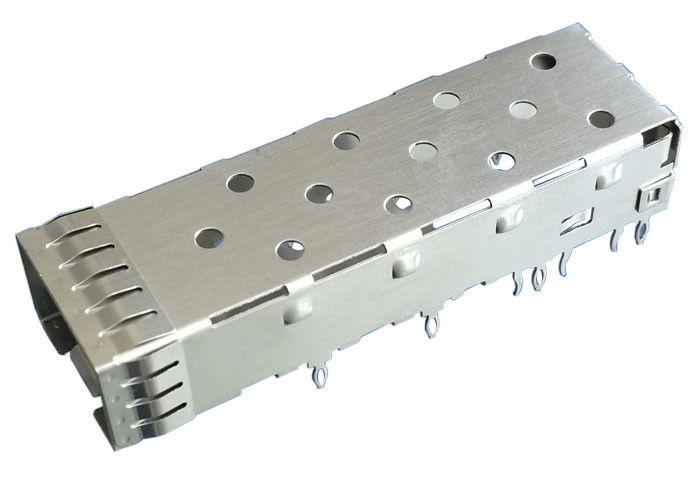

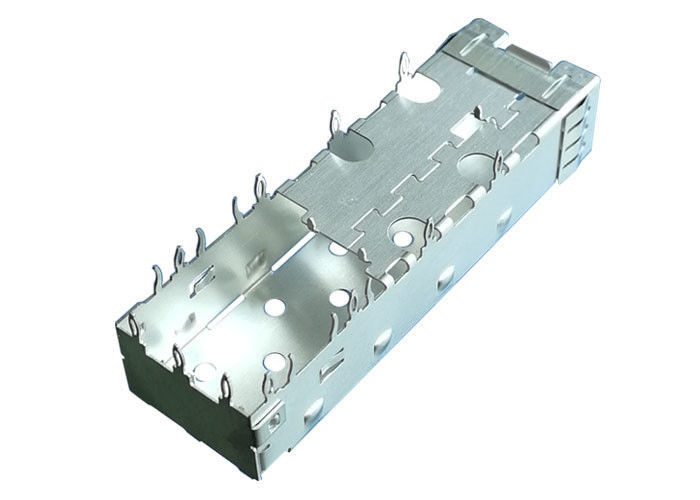

High Performance SFP Cage Connector 1 x 1 Single Port 3D Foot Design 3.05 mm

High Performance SFP Cage Connector 1 x 1 Single Port 3D Foot Design 3.05 mm

develop and produce SFP, SFP +, QSFP cages to be fully compliant with the Multi-Source Agreement (MSA) specification. Used in either copper or optical applications, the cage construction is a one-piece, stamped and formed metal to offer the best performance for EMI shielding. Our single-port cage is designed with various pin and plating options to address press-fit and solder applications.

1. Features

• Mates with SFP, SFP+, XFP, or ZENPAK transceivers

• Heat transfer windows on all SFP cage surfaces

• Enhanced transceiver kick-out springs

• Press-fit or through-hole solder leads on cages

• Connectors and cage available

• Available individually or as a kit (SFPK Series)

• Supports MSA compliant host board layouts and transceiver designs

• Convenient kit with SFP connector and cage

• 3D foot design for improved press-fit retention and contact to host board holes

• One-piece, stainless steel construction

• Low emission design via fold-back spring fingers – no openings for radiation to pass through

• Available with single or multi-port (panel mount) cages

• Simple and fast installation / removal

• Host board holes not damaged when cage is removed

2. Benifits:

• MT design packaged in tape and reel
• Ensures easy pick-and-place to the PCB

• Single port cages available in press-fit, solder-post and PCI (1°) versions; ganged cages available in press-fit version
• Enables use with various board thicknesses and assembly processes

• Press-fit tails accommodates belly-to-belly applications for single and ganged cages
• Ensures best use of PCB real estate

• Modules oriented "belly-to-belly" when inserted
• Ease of removal of the module from the port

• Integrated light pipes for use with SMT Light Emitting Diode's (LED's)
• Provides port status and activity feedback to the user

• Unique thumb latch
• Provides intuitive squeeze and pull-latching mechanism

• Hot-pluggable transceivers
• Allow insertion and removable of plug without powering down the system

• Press-fit termination to PCB
• Eliminates soldering, lowering the applied cost and avoiding solder-related issues

• Ganged cages have 360° elastomeric gaskets, spring fingers and multiple ground-pin locations
• Provides advanced EMI shielding to the bezel

• Elastomeric or metal gasket
• Two options for superior EMI protection

• Zinc diecast backshells
• Provide 360° Electro Magnetic Interference (EMI) shielding

3. Applications:

by Protocol

• SONET
• Gigabit Ethnet
• Fiber Channel
• Infiniband *
• Serial data transmission

by Product

• Enterprise Storage: Server
• Networking: Router, Optical Transport Switch
• Telecommunications: Remote Radio Head, Base Station Switch

4. SFP Cage Advantages:

Press-fit Cage for Small Form Factor Pluggable (SFP) Connector Transceiver

IT is offering its cage for Small Form Factor Pluggable (SFP) transceivers with the most rigid mechanical design available on the market. The cage is designed for press fit applications in order to reduce high volume manufacturing effort. Externally bent bezel contact springs and one-piece construction enhance EMI performance. As part of GLGNET's Total Transceiver Solution, the SFP Cage is your logical choice for next generation pluggable transceivers.

• Low cost
• Compact Form, Smaller than XFP, X2, EXNPAK;
• Variety Products, SFP Cages, QSFP cages, SFP plus Cages, QSFP plus Cages, SFP28 Cage, QSFP28 Cages, etc.
•  support customization: Heat Sink, Light Pipes, PIN length, Mount type, 1 x n or 2 x n, with or without Integrated Connector;

5. Customization Services

• 1 x n or 2 x n Structures
• With or without Light pipes,
• Light Pipes on Top or Buttom or Integrated
• With oe without Heat Sink
• With or without Elastomeric or metal gasket
• Cage with or without Integarted Connector
• With or Without EMI Spring Finger

6. Advantage

• 20 years experiences in Variety Connectors
• 1500 Employees
• 58 R&D Engineers.
• 22000 square meters Factory
• We support Costom Service;
• Our products are compliant with RoHS, REACH and UL certification
• Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
• 20KK Prots / Month Capacity
• ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
• We have our Own Hardware Mold and Plastic Mold
• Has 3 LS-WEDM Machines
• Has 12 WEDM Machines and 8 CNC Machines
• Has 20 Grinding Machines and 12 Electrical Discharge Machines
• Has 30 Stamping Machines
• Has 55 Plastic Injection Machines
• Has Automatic Assembly Workshops

7. Mechnical Drawing

You can know the Demensions Details from Following Drawing
