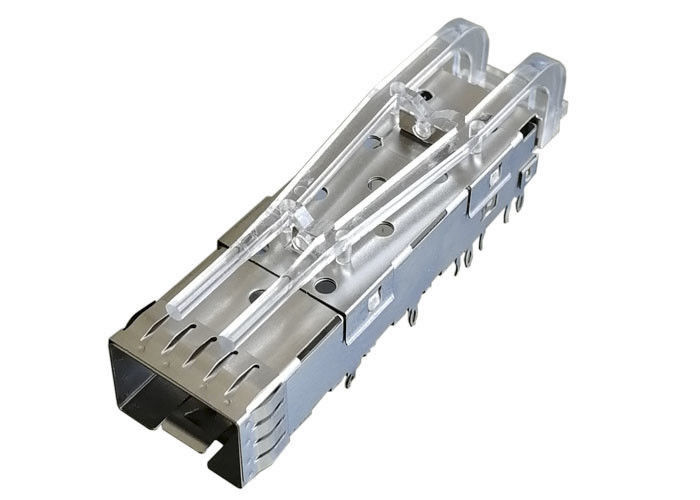

Light Pipes SFP Cage Connector Panel Mount Copper Alloy For Gigabit Ethnet

Light Pipes SFP Cage Connector Panel Mount Copper Alloy For Gigabit Ethnet

develop and produce SFP, SFP +, QSFP cages to be fully compliant with the Multi-Source Agreement (MSA) specification. Used in either copper or optical applications, the cage construction is a one-piece, stamped and formed metal to offer the best performance for EMI shielding. Our single-port cage is designed with various pin and plating options to address press-fit and solder applications.

1. Product Structure:

• 1 x 1 Single Port;
• Stampled and Formed Metal Cage;
• With Light Pipes, provides port status
• Without Heat Sink, can be customized as required
• Press Fit Mount Type, Can be customized as required
• Cage Material : Copper Alloy
• CLIP : Stailness Steel
• With or Without Elastomeric gasket
• Light Pipe Material: Polycarbonate Color Clear
• Cage Length : 53.4 mm
• Cage Width : 14.0 mm
• Cage Height : 9.55 mm

2. Features

• Available with single or multi-port (panel mount) cages

• Convenient kit with SFP connector and cage

• 3D foot design for improved press-fit retention and contact to host board holes

• One-piece, stainless steel construction

• Low emission design via fold-back spring fingers – no openings for radiation to pass through

• Enhanced transceiver kick-out springs

• Simple and fast installation / removal

• Host board holes not damaged when cage is removed

• Mates with SFP, SFP+, XFP, or ZENPAK transceivers

• Connectors and cage available

• Press-fit or through-hole solder leads on cages

• Available individually or as a kit (SFPK Series)

• Heat transfer windows on all SFP cage surfaces

• Supports MSA compliant host board layouts and transceiver designs

3.SFP Cage Advantages:

• Low cost
• Compact Form, Smaller than XFP, X2, EXNPAK;
• Diverse Products, SFP Cages, QSFP cages, SFP plus Cages, QSFP plus Cages, SFP28 Cage, QSFP28 Cages, etc.
• support customization: Heat Sink, Light Pipes, PIN length, Mount type, 1 x n or 2 x n, with or without Integrated Connector;

4. Benifits:

• MT design packaged in tape and reel
• Ensures easy pick-and-place to the PCB

• Single port cages available in press-fit, solder-post and PCI (1°) versions; ganged cages available in press-fit version
• Enables use with various board thicknesses and assembly processes

• Press-fit tails accommodates belly-to-belly applications for single and ganged cages
• Ensures best use of PCB real estate

• Integrated light pipes for use with SMT Light Emitting Diode's (LED's)
• Provides port status and activity feedback to the user

• Modules oriented "belly-to-belly" when inserted
• Ease of removal of the module from the port

• Unique thumb latch
• Provides intuitive squeeze and pull-latching mechanism

• Available in 15 or 30µ" gold plating
• Accommodates cost and performance preferences

• Ganged cages have 360° elastomeric gaskets, spring fingers and multiple ground-pin locations
• Provides advanced EMI shielding to the bezel

• Elastomeric or metal gasket
• Two options for superior EMI protection

• Press-fit termination to PCB
• Eliminates soldering, lowering the applied cost and avoiding solder-related issues

• Hot-pluggable transceivers
• Allow insertion and removable of plug without powering down the system

• Zinc diecast backshells
• Provide 360° Electro Magnetic Interference (EMI) shielding

5. Applications

by Product

• PCB
• Enterprise Storage: Server
• Networking: Router, Optical Transport Switch
• Telecommunications: Remote Radio Head, Base Station Switch

by Protocol

• SONET
• Gigabit Ethnet
• Fiber Channel
• Serial data transmission

6. Customization Services

• 1 x n or 2 x n Structures
• With or without Light pipes
• With oe without Heat Sink
• With or without Elastomeric or metal gasket
• Cage with or without Integarted Connector
• With or Without EMI Spring Finger

7. Advantage

• 20 years experiences in Variety Connectors
• 1500 Employees
• 58 R&D Engineers.
• 22000 square meters Factory
• We support Costom Service;
• Our products are compliant with RoHS, REACH and UL certification
• Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
• 20KK Prots / Month Capacity
• ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
• We have our Own Hardware Mold and Plastic Mold
• Has 3 LS-WEDM Machines
• Has 12 WEDM Machines and 8 CNC Machines
• Has 20 Grinding Machines and 12 Electrical Discharge Machines
• Has 30 Stamping Machines
• Has 55 Plastic Injection Machines
