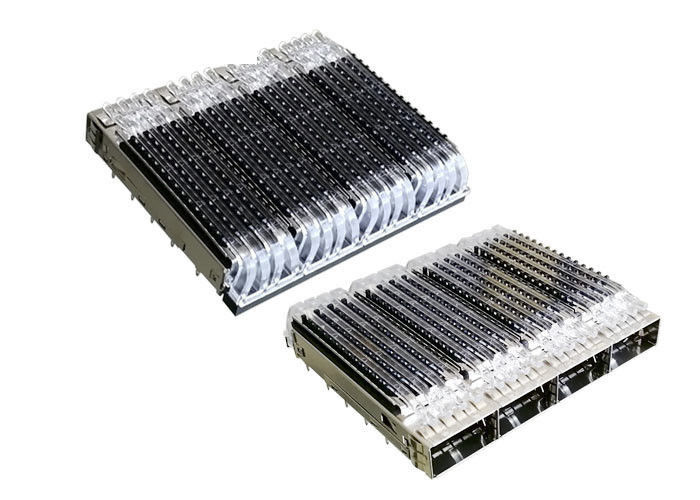

QSFP28 Cage One Piece Applied For QSFP28 Connector / Transceiver

1x3 Ganged SFP Cage Connector QSFP28 Cage One Piece Copper Alloy Material

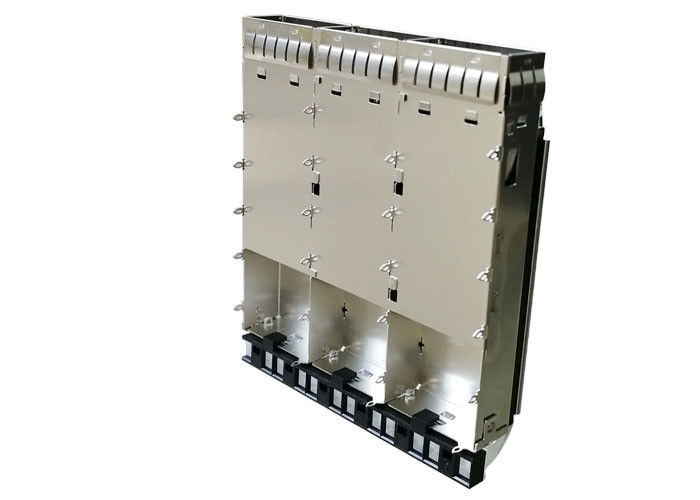

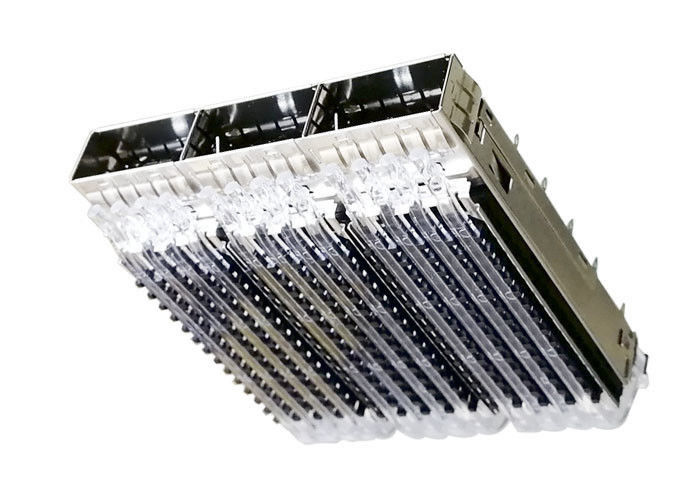

1. QSFP28 Cage (49009-00N011) Structure:

• 1 X 3 Ports Ganged QSFP28 Cage, without Integrated SFP Connector
• QSFP28 Cage Length : 67.89 mm
• QSFP28 Cage Width : 57.45 mm
• QSFP28 Cage Height : 15.15 mm ( with Heat Sink )
• QSFP28 Cage Press Fit PIN Length: 2.05 mm
• Single Port Width : 18.75 mm
• Single Port Height : 8.95 mm
• Stampled and Formed Metal Cage, with heat dissipation hole;
• With Light Pipes, let know the link status
• With Heat Sink, heat sink Material is Aluminum, with Black Oxide treatment on Surface
• Press Fit Mount Type, Can be customized as required
• Cage Material : Copper Alloy
• CLIP : Stailness Steel
• Light Pipe : Polycarbonate Color Clear
• With EMI Tab Spring, provide better EMI shielding to the bezel

2. QSFP28 Cage Features

• One-piece, Copper Alloy construction

• Mates with QSFP28 transceivers

• Available with single or multi-port (panel mount) cages

• Convenient kit with QSFP connector / Interface and cage

• Low emission design via fold-back spring fingers – no openings for radiation to pass through

• Enhanced transceiver kick-out springs

• 3D foot design for improved press-fit retention and contact to host board holes

• Simple and fast installation / removal

• Host board holes not damaged when cage is removed

• Connectors and cage available

• Press-fit or through-hole solder leads on cages

• Available individually or as a kit (SFPK Series)

• Heat transfer windows on all QSFP cage surfaces

• Supports MSA compliant host board layouts and transceiver designs

3. Mechnical Drawing

You can know the Demensions Details from Following Drawing

4. Advantages:

• We have our Own Hardware Mold and Plastic Mold
• Has 3 LS-WEDM Machines
• Has 12 WEDM Machines and 8 CNC Machines
• Has 20 Grinding Machines and 12 Electrical Discharge Machines
• Has 30 Stamping Machines
• Has 55 Plastic Injection Machines
• Has Automatic Assembly Workshops
• Fast Response, Professional R&D Engineers, Positive Service Team, Ensure all process effective and well-organized;
• 20 years experiences in Variety Connectors
• 1500 Employees
• 58 R&D Engineers.
• 22000 square meters Factory
• 20kk ports / month Capacity
• We support Costom Service;
• Our products are compliant with RoHS, REACH and UL certification
• Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
• 20KK Prots / Month Capacity
• ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification​

5. QSFP28 Cage Applications:

• Data/Communications
• High-end servers
• Networking
• Fibre Channel and Gigabit Ethernet
• Networking equipment
• Router/Switch
• Servers
• Storage
• Telecommunications
• Switches
• Telecommunications hardware

This is not a definitive list of applications for this product. It represents some of the more common uses.

6. Customization Service

• Support to make Integrated QSFP28 Connector with EMI Cages, isolated QSFP28 Connector, or Isolated QSFP28 Cages
• The QSFP28 Cage can be with 1 x n Ganged Structure, or 2 x n Stacked Structure
• QSFP28 Cage can be with different heat dissipation Hole
• QSFP28 Cage can be with Light pipes or without, Built in or on Cage top or buttom
• QSFP28 Cage can be with Heat Sink or without, and the Heat sink with different Style
• QSFP28 Cage can be with EMI Finger Spring or elastomeric Gasket
• Different Mount Typ, Press Fit or Solder Post and the Pin length can be customized

7.  QSFP28 Cage Advantages:

8. What is QSFP?

supply a series of QSFP28 Cage assemblies without integrated connectors, that cages are widely used in the networking, telecommunication and data centre industries. The next generation of high-speed I/O devices, supporting 40G to 100G Ethernet Application. The Press Fit copper alloy cages offer EMI spring or EMI gasket variants and are fully backward compatible with existing QSFP optical modules ( Transceiver ) and cable assemblies.

QSFP28 Transceivers are mainly used for 40G to 100G Ethernet Application, the compact design, low power consumption, and low cost make it the first option in 100G Ethernet Application;

 QSFP28 Cage is Compatible with next Types of QSFP28 Transceiver ( Optical Module )

• 100GBASE-SR4 QSFP28 Transceiver
• 100GBASE-PSM4QSFP28 Transceiver
• 100GBASE-LR4 QSFP28 Transceiver
• 100GBASE-CWDM4 QSFP28 Transceiver
