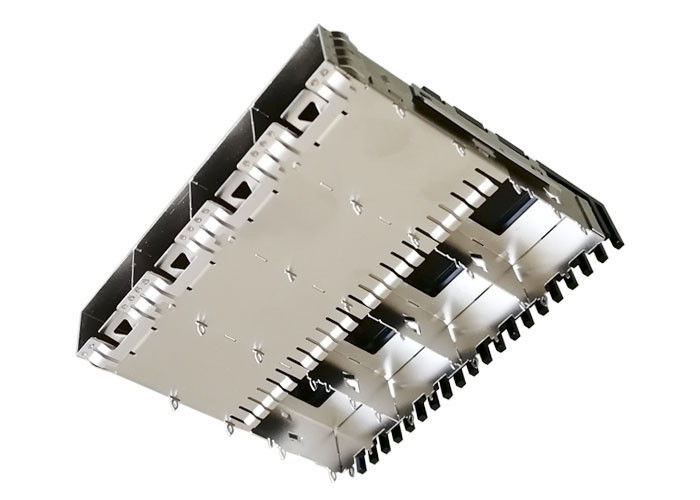

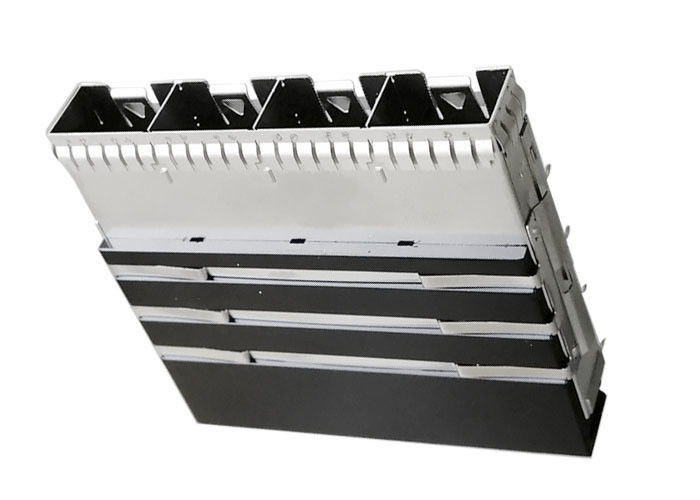

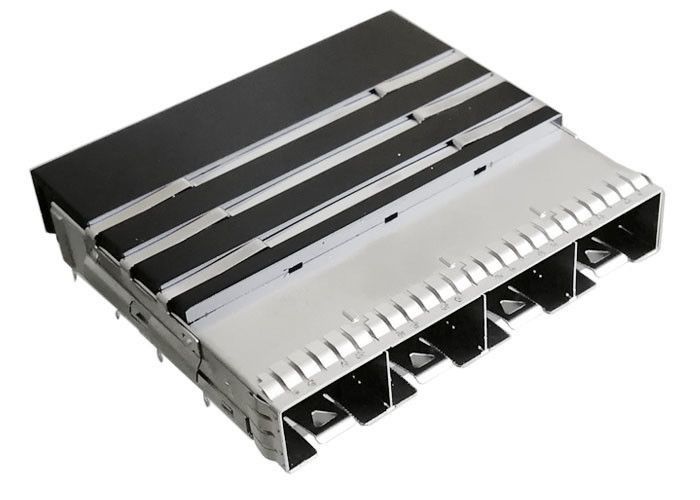

Heat Sink SFP Cage Connector 1x4 Multiple Port SFP28 Cage

Heat Sink EMI Tabs SFP Cage Connector 1x4 Multiple Port SFP28 Cage

The SFP28 Cage is Compatible with small form-factor family of optical transceivers and cables. , Users want to achieve instant fiber connectivity and connect the network to different fiber distances and types at rapid data rates, like 25G ( SFP28 )  40G ( QSFP+ ) and 100G ( QSFP28 ), they need SFP Optical Module (Transceiver ), Fiber cables, Female Connectors and SFP Cages which is for EMI Protection;

IT is the manufacture who develop and produce many different SFP Cages, with or without Integrated Female Connector;

 SFP Cages include :

• SFP Cages,
• SFP plus Cages (SFP + Cages )
• SFP28 Cage
• QSFP cages
• QSFP plus Cages ( QSFP + Cages )
• QSFP14 Cage
• QSFP28 Cages, etc.

1.SFP28  Cage ( 39002-00N011 )Structure:

2.  SFP28  Cage ( 39002-00N011 ) Materials:

• CLIP : Stainless steel
• EMI Spring Finger : Copper Alloy
• Belly PCB Gasket: Coated polymide
• Cage : 0.25 mm thickness copper alloy
• Heat Sink : Aluminum , with black Oxide Treatment On Surface

3.SFP28  Cage ( 39002-00N011 ) Applications:

• Servers
• Storage
• Routers
• Switches
• Telecommunications
• Data/Communications
• Networking
• Fibre Channel and Gigabit Ethernet

4.  Advantages:

• 20 years experiences in Variety Connectors
• 1500 Employees
• 58 R&D Engineers.
• 22000 square meters Factory
• 20kk ports / month Capacity
• We support Costom Service;
• Our products are compliant with RoHS, REACH and UL certification
• Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
• 20KK Prots / Month Capacity
• ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
• Fast Response, Professional R&D Engineers, Positive Service Team, Ensure all process effective and well-organized;
• We have our Own Hardware Mold and Plastic Mold
• Has 3 LS-WEDM Machines
• Has 12 WEDM Machines and 8 CNC Machines
• Has 20 Grinding Machines and 12 Electrical Discharge Machines
• Has 30 Stamping Machines
• Has 55 Plastic Injection Machines
• Has Automatic Assembly Workshops​

5.  SFP28 Cage ( 39002-00N011 ) Mechnical Drawing

You can know the Demensions Details from Following Drawing
