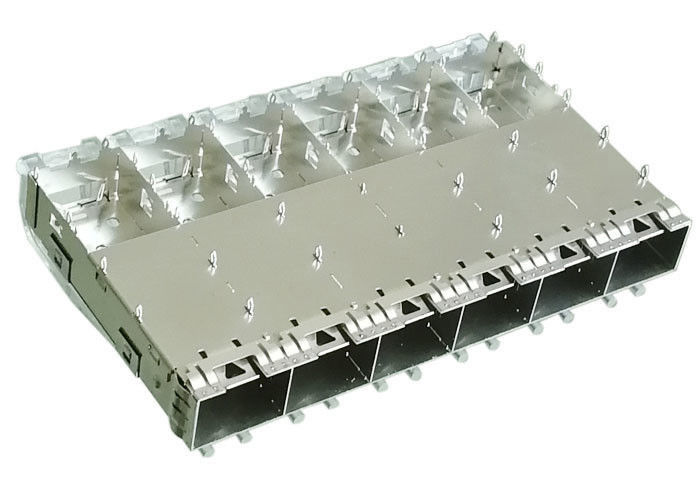

Press Fit SFP Socket SFP Cage Connector 1x6 Multiple Port With EMI Finger Spring

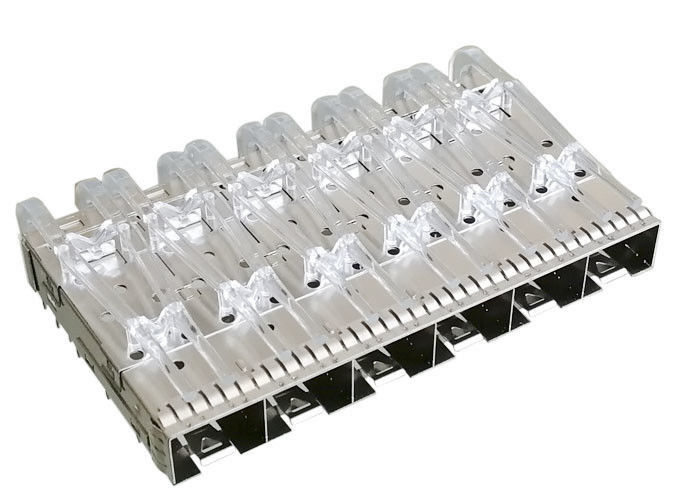

Press Fit SFP Cage 1x6 Multiple Port With EMI Finger Spring Light Pipes

The SFP small form –factor pluggable plus range of products are designed for applications in the networking, telecommunication and data centre industries. The next generation of high-speed I/O devices, supporting 10 Gbit/s Ethernet InfiniBand enhanced data rate requirements. The Press Fit copper alloy cages offer EMI spring or EMI gasket variants and are fully backward compatible with existing SFP+ optical modules and cable assemblies.

IT has Variety SFP Cage Products:

• SFP Cages,
• SFP plus Cages (SFP + Cages )
• SFP28 Cage
• QSFP cages
• QSFP plus Cages ( QSFP + Cages )
• QSFP14 Cage
• QSFP28 Cages, etc.

supports SFP cage + SFP connector total solution; That SFP Cages can be combined with integrated interface connector together, you only need to insert the SFP Transceiver with Fiber Cable assembly.

In addition,support to custom different SFP+ cage, our Customization service as following :

• Support to make Integrated SFP+ Connector with EMI Cages, isolated SFP Connector, or Isolated SFP+ Cages
• The SFP+ Cage can be with 1 x n Ganged Structure, or 2 x n Stacked Structure
• SFP+ Cage can be with different heat dissipation Hole
• SFP+ Cage can be with Light pipes or without, Built in or on Cage top or buttom
• SFP+ Cage can be with Heat Sink or without, and the Heat sink with different Style
• SFP+ Cage can be with EMI Finger Spring or elastomeric Gasket
• Different Mount Typ, Press Fit or Solder Post and the Pin length can be customized

1. SFP plus Cage ( 47036-00N011 ) Structure:

2.  SFP plus Cage ( 47036-00N011 ) Material :

• Cage : 0.25 MM Thickness Copper Alloy
• Light Pipe : Polycarbonate Color Clear
• CLIP : Stainless Steel
• EMI Spring Finger : Copper Alloy

3. SFP plus Cage ( 47036-00N011 ) Applications:

• Servers
• Storage
• Routers
• Switches
• Telecommunications
• Data/Communications
• Networking
• Fibre Channel and Gigabit Ethernet

4.  SFP plus Cage ( 47036-00N011 ) Product Benefit:

5. Advantages:

• We have our Own Hardware Mold and Plastic Mold
• Has 3 LS-WEDM Machines
• Has 12 WEDM Machines and 8 CNC Machines
• Has 20 Grinding Machines and 12 Electrical Discharge Machines
• Has 30 Stamping Machines
• Has 55 Plastic Injection Machines
• Has Automatic Assembly Workshops​
• 20 years experiences in Variety Connectors
• 1500 Employees
• 58 R&D Engineers.
• 22000 square meters Factory
• 20kk ports / month Capacity
• We support Costom Service;
• Our products are compliant with RoHS, REACH and UL certification
• Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
• 20KK Prots / Month Capacity
• ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
• Fast Response, Professional R&D Engineers, Positive Service Team, Ensure all process effective and well-organized;

6. Mechnical Drawing

You can know the Demensions Details from Following Drawing
