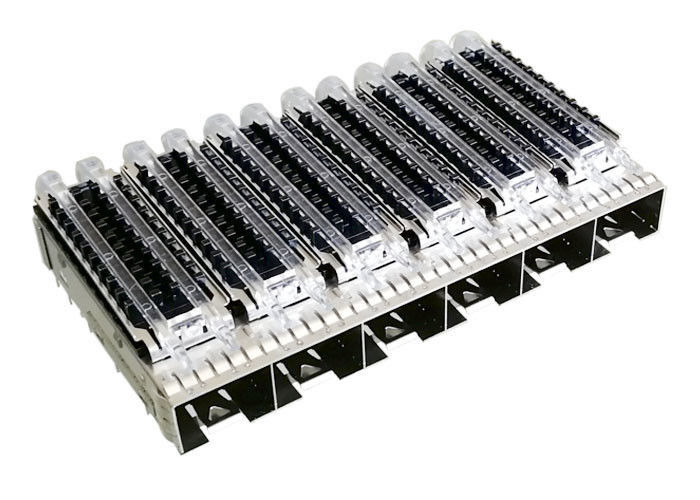

On Cage Top Surface SFP Cage Connector 1 X 6 Ganged With Heat Sink Light Pipes

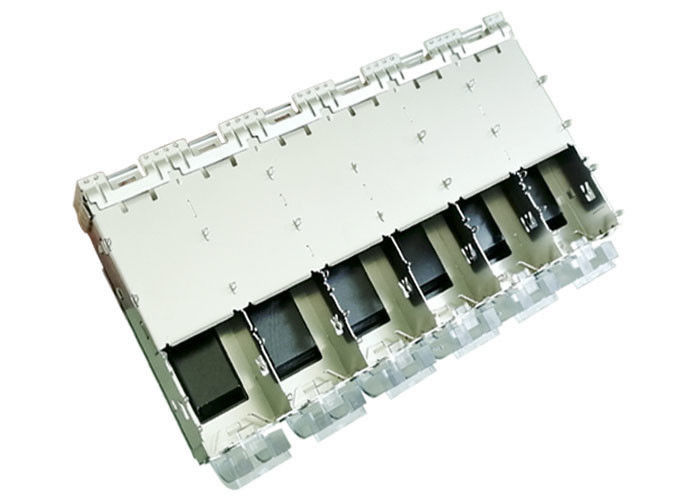

On Cage Top Surface SFP Cage 1 X 6 Ganged With Heat Sink Light Pipes

1. SFP Overview:

The Small Form-factor Pluggable (QSFP) is a compact, hot-pluggable transceiver used for data communications applications. The form factor and electrical interface are specified by a multi-source agreement (MSA) under the auspices of the Small Form Factor Committee. It interfaces networking hardware (such as servers and switches) to a fiber optic cable or active or passive electrical copper connection. It is an industry format jointly developed and supported by many network component vendors, allowing data rates from 1 Gb/s for SFP and 10 Gbit/s for QSFP+ and to the highest rate of 4x28 Gbit/s known as QSFP28 used for 100 Gbit/s links.

 produce SFP Cage which can be with or without integrated connector ( electrical interface) ;

Users need to transmit the Optical Signal or Electrical Signal at a distance by high speed, the Fiber , SFP Transceiver, electrical interface and SFP Cage are needed;

SFP cage actually is an Shielding Cage, for EMI, one Piece Copper Alloy Materials, with many Heat Dissipation hole, Mounting Pin ( Through Hole or Press Fit PIN ) , Light pipes and Heat sink.

2. SFP Cage ( 47047-00N011 ) Structure:

3.  SFP Cage ( 47047-00N011 ) Applications:

• Servers
• Storage
• Routers
• Switches
• Telecommunications
• Telecommunications hardware
• Data/Communications
• High-end servers
• Networking
• Fibre Channel and Gigabit Ethernet
• Networking equipment

4.  Customization Service

• Support to make Integrated SFP Connector with EMI Cages, isolated SFP Connector, or Isolated SFP Cages
• The SFP Cage can be with 1 x n Ganged Structure, or 2 x n Stacked Structure
• SFP Cage can be with different heat dissipation Hole
• SFP Cage can be with Light pipes or without, Built in or on Cage top or buttom
• SFP Cage can be with Heat Sink or without, and the Heat sink with different Style
• SFP Cage can be with EMI Finger Spring or elastomeric Gasket
• Different Mount Typ, Press Fit or Solder Post and the Pin length can be customized

5. Product Advantages

Custom Solutions

Heat Dissipation

Our thermally enhanced solutions offer better front-to-back and back-to-front airflow through the cages, providing better heat dissipation for industry leading thermal performance.

Signal Quality

To enhance signal quality, the SFP portfolio focuses on the latch-plate area to reduce EMI and avoid degradation of circuit performance and ensure compliance to standards. Products are offered in both an EMI spring and EMI elastomeric gasket versions to meet customer system requirements.

Key Features and Benefits, Performance and Flexibility

1. Offers cages in single-port, ganged (1xN) and stacked (2xN) configurations; belly-to-belly mounting cages also offered
2. Features elastomeric gaskets or springs for EMI containment
3. Offers heat sink and light pipe options
4. Stacked cages include an integrated high-speed connector
5. Complementary to the SFP portfolio of direct-attach copper cable assemblies and LC optical connectors and cable assemblies
6. Cages are available for PCI card applications ( one-degree mounting angle )

6.  Advantages:

• Fast Response, Professional R&D Engineers, Positive Service Team, Ensure all process effective and well-organized;
• 20 years experiences in Variety Connectors
• 1500 Employees
• 58 R&D Engineers.
• 22000 square meters Factory
• 20kk ports / month Capacity
• We support Costom Service;
• Our products are compliant with RoHS, REACH and UL certification
• Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
• 20KK Prots / Month Capacity
• ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
• We have our Own Hardware Mold and Plastic Mold
• Has 3 LS-WEDM Machines
• Has 12 WEDM Machines and 8 CNC Machines
• Has 20 Grinding Machines and 12 Electrical Discharge Machines
• Has 30 Stamping Machines
• Has 55 Plastic Injection Machines
• Has Automatic Assembly Workshops​

7. Mechnical Drawing

You can know the Demensions Details from Following Drawing
