2 X 5 Stacked SFP Case With Integrated Interface Connector With EMI Finger Spring

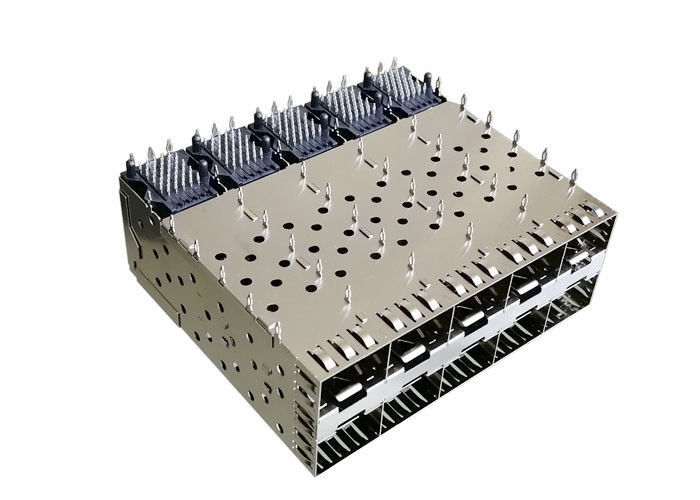

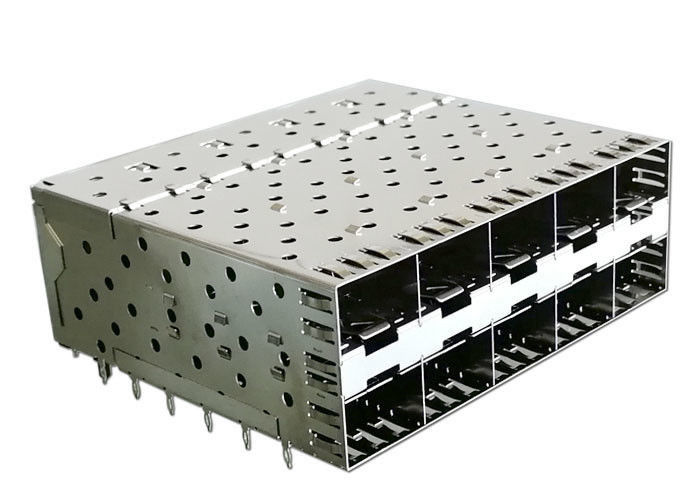

SFP Cage Connector 2 x 5 Stacked SFP Cage with Integrated Interface Connector with EMI Finger Spring

OUR is offering its cage for Small Form Factor Pluggable (SFP) transceivers with the most rigid mechanical design available on the market. The cage is designed for press fit applications in order to reduce high volume manufacturing effort. Externally bent bezel contact springs and one-piece construction enhance EMI performance.

SFP design is more Compact than XFP, X2, EXNPAK, Cost also is lower, it is becoming more and more popular in Networking and Telecommunications Fields Who need higher transmission speed and longer transmission Distance;

1.  Customization Service

• Support to make Integrated SFP Connector with EMI Cages, isolated SFP Connector, or Isolated SFP Cages
• The SFP Cage can be with 1 x n Ganged Structure, or 2 x n Stacked Structure
• SFP Cage can be with different heat dissipation Hole
• SFP Cage can be with Light pipes or without, Built in or on Cage top or buttom
• SFP Cage can be with Heat Sink or without, and the Heat sink with different Style
• SFP Cage can be with EMI Finger Spring or elastomeric Gasket
• Different Mount Typ, Press Fit or Solder Post and the Pin length can be customized

2. Features

• Available with single or multi-port (panel mount) cages

• Convenient kit with QSFP28 connector and cage

• 3D foot design for improved press-fit retention and contact to host board holes

• One-piece, stainless steel construction

• Low emission design via fold-back spring fingers – no openings for radiation to pass through

• Enhanced transceiver kick-out springs

• Simple and fast installation / removal

• Host board holes not damaged when cage is removed

• Mates with QSFP28 transceivers

• Connectors and cage available

• Press-fit or through-hole solder leads on cages

• Available individually or as a kit (SFPK Series)

• Heat transfer windows on all SFP cage surfaces

• Supports MSA compliant host board layouts and transceiver designs

3.  SFP + Cage Connector (47006-11M321) Structure:

• The Cage is Stampled and Formed Metal Cage, with heat dissipation hole;
• Without Light Pipes, can be customized as required
• Without Heat Sink, can be customized as required
• With EMI Finger Spring, provide better EMI shielding to the bezel
• Press Fit Mount Type, Can be customized as required
• Cage Material : Copper Alloy
• With 20 pin Integrated Connector
• Cage : Copper Alloy 0.25 mm
• Connector housing material is glass filled thermoplastic black Color, UL940 - V
• Connector Terminal: Phosphor Bronze
• Finish: Terminals Contact Area Plated Gold
• Solder Terminal Area Plated Tin
• 2 x 1 Multiple Port SFP Cage Connector, with Integrated SFP Connector
• SFP + Cage Length : 63.25 mm
• SFP + Cage Width : 71.5 mm
• SFP + Cage Height : 25.0 mm
• SFP + Press Fit PIN Length: 3.05 mm

4. SFP PLUS Cages Applications:

• Networking equipment
• Router/Switch
• Data/Communications
• High-end servers
• Networking
• Fibre Channel and Gigabit Ethernet
• Servers
• Storage
• Telecommunications
• Switches
• Telecommunications hardware

This is not a definitive list of applications for this product. It represents some of the more common uses.

5.

Key Features and Benefits, Performance and Flexibility:

Heat Dissipation:

Our thermally enhanced solutions offer better front-to-back and back-to-front airflow through the cages, providing better heat dissipation for industry leading thermal performance.

Signal Quality:

To enhance signal quality, the SFP portfolio focuses on the latch-plate area to reduce EMI and avoid degradation of circuit performance and ensure compliance to standards. Products are offered in both an EMI spring and EMI elastomeric gasket versions to meet customer system requirements.

6. Mechnical Drawing

You can know the Demensions Details from Following Drawing
