Place of Origin:
China
Certification:
UL,TUV,CE,ROHS,CQC

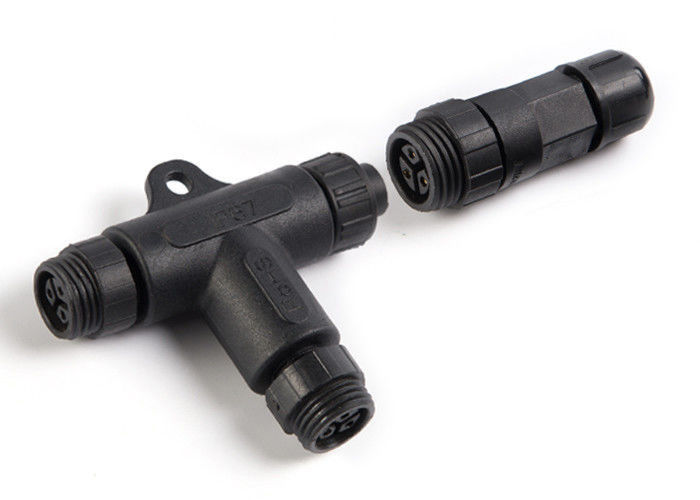

T types 3 Pin Screw Locking Waterproof Connector
Product Description
Technical Specification
| Connector type : | Waterproof T connector |
| Connector color: | Black |
| Waterproof level: | IP68 |
| Cable specification: | 20AWG-16AWG |
| Cable diameter range: | 4.5mm-11mm |
| Rated current (A): | 10A |
| Operating voltage (AC.V.rms): | 300V |
| Connection method: | Screw locking connector |
T shaped waterproof connectors coudl be a flexiable option to different applications or fields, such as audio,vidio,stage lighting,landscape light etc. let's different cable length to connect together,easy to install and disassemble it.
IP68 waterproof level let it could be for underwater and underground applications, such as pool lights, marine using etc.
Material Info
| Shell and insulated parts: | High performance engineering plastics |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
Better quality connectors could be used for a long time and no need to replace always, UL approved material and connectors to ensure your applications long working time and more stable.
Screw locking designing let's your installation and repair more simple and fast.
Popular Applications
| Stage equipment | The smart grid | LED lighting |
| Medical equipment | Battery charger | Automatic |
| Solar energy equipment | Ship equipment | Agriculture |
| Electric power equipment | Stage lighting equipment | Ebike/motorcycle |
