Place of Origin:
Shenzhen China
Certification:
UL , CE , CQC , ROHS
Description of Connector
1. LED display waterproof plug connectors
2. LED display waterproof cable connectors
3. 3Pin electrical circular waterproof connector
4. LED display waterproof plug connectors named powercon connector , usually provide the solution for power transmission , and be used with socket . there are 2sets powercon plug and socket , and 2 sets male and female connector in a 500 x 500 cabinet led screen .
Feature / Application of Powercon Connector
Datasheet

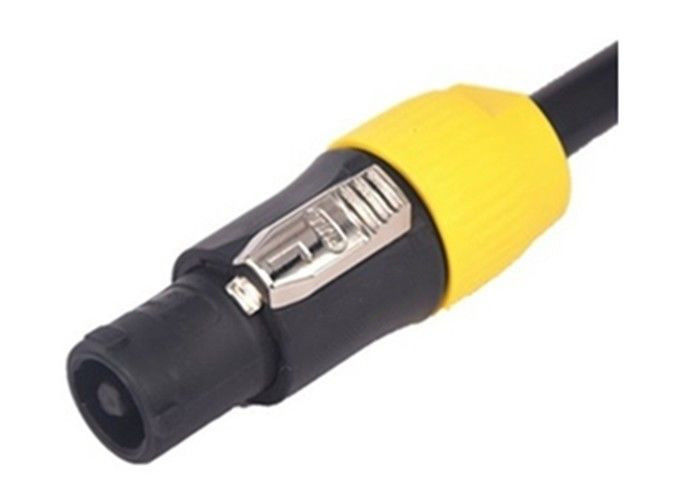

Name | 3Pin powercon plug connector | ||
Number of contacts | 3 | ||
Current/voltage rating | 20A 500V | ||
Contact diameter X number | φ2.0 | ||
Withstanding voltage | 2500V | ||
Protection level | IP44/IP65 | ||
Cable specification | 2.5mm2 (14AWG) | ||
Diameter range | MAXφ12mm | ||
Operating temperature | -25℃ - 80℃ | ||
Connecting mode | Plug/Unplug | ||
Shell , insulating parts | High-performance engineering plastics | ||
Material of copper needles | Copper alloy | ||
Flame - resistant rating | UL94-V0 | ||
Color | Blue / yellow / black / gray / black and yellow | ||
| Certification | UL , CQC , CE ,ROHS | ||
| Cable | Rubber / pvc / nylon | ||
| Length of cable | Per your requirement | ||
| Wiring | Screw terminal | ||
| Application | LED display / power | ||
| Connector | Plug and socket | ||
| Warranty | 5 years | ||
FAQ
I am interested in your product .
I want the connector in urgent
Can you provide the samples ? Free or extra ?
Yes , we can provide 1-3 set free samples for quality test , but the shipping cost should be paid .
