Place of Origin:
China
Certification:
UL,CE,RoHs

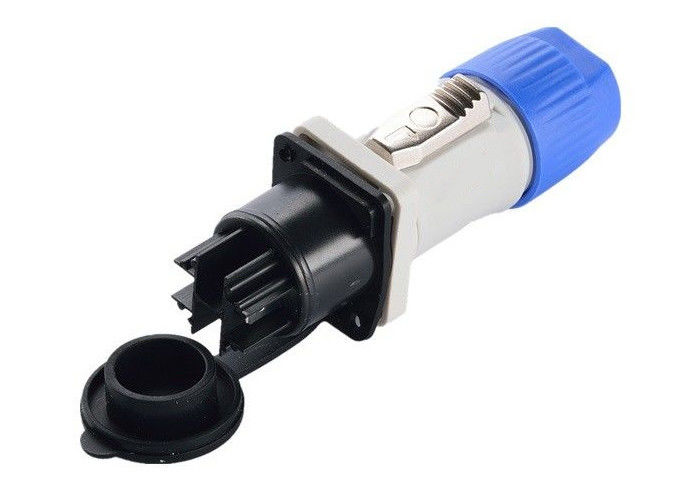

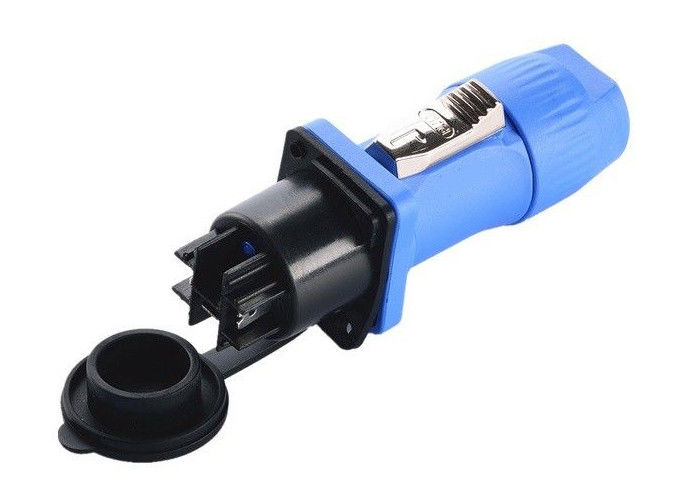

IP65 3 Pole Waterproof Plug Connector For Outdoor Led Rental Display
Main Features :
1. IP44/IP65 are available.
2. UL approved
3. 2pin,3pin,4pin are optional
4. Multi color: yellow, blue, grey, black
| Specifications: | |
| Connecting mode: | Push pull locking waterproof connector |
| Core number: | 3 poles |
| Connector type : | Power plug with socket |
| Connector color: | Black, blue, yellow,grey |
| Waterproof level: | IP44/IP65 |
| Cable specification: | 2.5mm²(14AWG) |
| Cable diameter range: | Φ8mm-Φ12mm |
| Rated current: | 20A/300V |
| Withstanding voltage : | 2500V |
Applications:
Powercon connector as a standard connector for led display field, it could be widely used for outdoor led display, rental display, audio and video etc.
RFQ :
Q: Are you a factory or trading company?
A: Yes, we are definitely factory, you are very welcome to visit our factory at your convenience, which Located in B-9, Fubilun industrial park, Chaoyang rd,Yanchuan community, Songgang, Shenzhen, China
Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Connector and Contact Gender
* Confirm Assembly style
* Confirm Mating style ( series or parallel)
* Confirm Cable OD size
* Confirm Cable Length and Material.
Q: hello, i do not know what's kind of connector i need, but i need it for led connection.
A: hello my friend, we are pleased to provide complete solution for you if more details could be provided such as: current(amp), voltage, wire number, cable size etc.
Q: How can I get samples?
A: It's my honor to offer you samples, we could offer 3pcs each item for free charge but cost of freight would be on your side. If need more items, more quantity for each item, we will charge for the samples.
Q: How many materials you can provide?
A: Connectors and cable are made by different material. Usually connector ia made by PVC/Nylon and cable is made by PVC/Rubber/PU/Silicone . Meanwhile, OEM/ODM both accepted .
Q: Which certification you have to your connectors, i want some TUV listed waterproof connectors.
A: Hi dear, TUV,UL,ROHS,CE,CQC are available to our connectors, so TUV is no problem .
Q: How does your factory do regarding quality control?
A: We will pay much attention on every piece product and will do international certification and test according to customer requirements, such as UL, CE, CCC. We are planning to increase TUV ,VDE certification this year.
Q: Do you have a guarantee of your product quality?
A: Yes, we provide warranty for 3 years.
Q: What is your terms of payment?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance , balance before shipment. More payment terms are negotiable.
If you have another question, please feel free to contact us.
