Place of Origin:
China
Certification:
TUV, UL, 3C, CE, ROHS, ISO90001

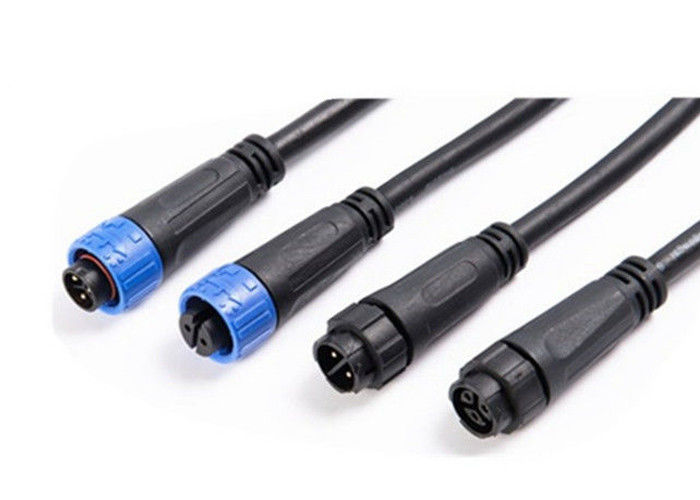

Jnicon 2 Pin 3 Pin Waterproof Cable Connector Push Locking Male Female IP67
Main features of 2 pin 3 Pin Waterproof cable Connector:
• the current/ voltage of waterproof male female connector are 10A/300V. the withstanding voltage is 1500V AC.
• Operate temperature: -45°C~+85°C
• M16 series 2-8 pins are available and for varies industrial demands. male ,female and socket are available.
• High current application safety and stable wire. 1.0mm~0.5mm² wire for 2 pin 3 pin M16 series Push Locking waterproof male female connector
• OEM/ODM are accepted. cable length can customized.
The specifiction of 2 pin 3 pins waterproof male female connector
| SPECIFICATION | |||||
| Designation | 3 pin male female waterproof date connector cable welding | ||||
| Model No. | 52-100211-01/52-100311-01 | ||||
| Item | Specification | ||||
| 1. Electrical characteristics | |||||
| 1A | Contact Resistance | 10mΩ max. | |||
| 1B | Insulation Resistance | 10MΩ min. | |||
| 1C | Withstand Voltage | 1500V AC There shall be no breakdown. | |||
| 1D | Rating | 10A 300V | |||
| 2. Mechanical | |||||
| 2A | Mating/Unmating force | Mating & Unmating Force: 10~30N Test data:22N,23N,25N,26N,23N | |||
| 2B | Life test | Mating & Unmating 500 cycles | |||
| 3. Material | |||||
| 3A | Contact Plating | 1u" gold plating | |||
| 3B | Contact material | Brass (C3604) | |||
| 3C | Housing material | PA66 | |||
| 4. Environmental | |||||
| 4A | Flammability | UL 94V-0 | |||
| 4B | Operation temperature range: | -30℃~+80℃ | |||
| 4C | Preservative temperature range: | -40℃~+85℃ | |||
More detail:
• The copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.
• Vibration resistance,impact resistance,stretching resistance.
• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively.
Application
► M16 series connectors could be widely used in indoor & outdoor led lighting,electricl power connection,landscape lights,underwater lights, equipments etc, have high waterproof degree--IP67.
► It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.
► Outdoor waterproof connector have IP67 waterproof protection rating, it works reliably in door, outdoor.
