Place of Origin:
China
Certification:
UL/CE/TUV/CQC/RoHS
Product Description
* Current rating: 20A
* Accepted Max. Cable OD: 11 mm
* UL, TUV, CCC, CE, RoHS approved
* We could help to attach cable in any length and process terminals if required
* Customer's drawings and designs are welcome, as we have our own professional R&D team to provide you various solutions
Product Features
1. Four-point spiral locking with military standard.
2. Optional shell color to meet different environmental requirements.
3. Rated current: 20A rms.
4. The IP67 protection level is met when the product is connected.
Product Parameter
| Specifications | |
| Connecting mode | Push locking type |
| Protection level | IP67 |
| Cable specification | 0.75mm2 ~ 2.5mm2 /20~14AWG |
| Diameter range | Φ5mm ~Φ11mm |
| Contact diameter×Qty | Φ1.8x3 |
| Current rating(A) | 20A |
| Operating voltage | 500V |
| Withstand voltage | 2500V |
To Be Your The Best Connection Expert
1) IP67 waterproof in locked condition with ISO9001 management under efficient service
2) Provide free samples within 3 working days if it is normal product with existing tooling
3) Effective communication and rapid response
4) Early design-in capability,OEM, ODM are available
5) Globalization, localization of operation and management
6) 3 years warranty

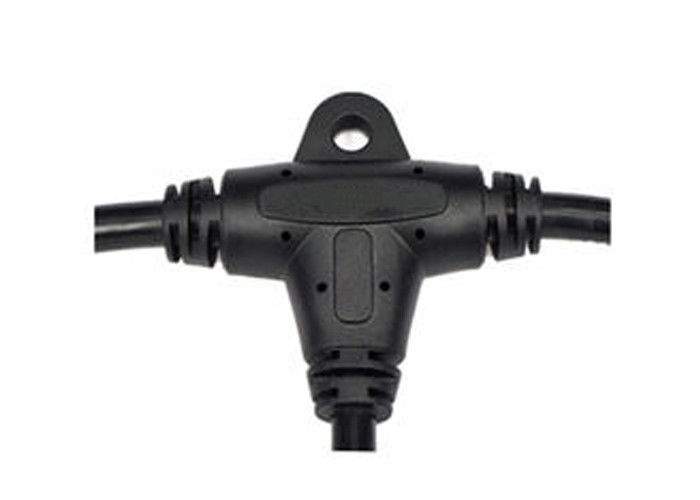

Product Image
