Place of Origin:
China
Certification:
UL/CE/TUV/CQC/RoHS
Product Description
* Current rating: 20A
* Accepted Max. Cable OD: 11 mm
* Field installable, soldering or screw connection
* UL, TUV, CCC, CE, RoHS approved
* High quality with 24 months waranty
* Pin range: 2, 3, 4, 5
* We could help to attach cable in any length and process terminals if required
* Customer's drawings and designs are welcome, as we have our own professional R&D team to provide you various solutions
Product Features
1. Four-point spiral locking with military standard.
2. Optional shell color to meet different environmental requirements.
3. 2-5PIN power supply, 6-22PIN signal is optional.
4. Rated current: 20A rms.
5. The IP67 protection level is met when the product is connected.
Product Parameter
| Connector | M12,M14,M16,M18,M19,m25 |
| 2P 3P 4P 5P 6P 8P Waterproof Cable Connector | |
| Wire | 24~14Gauge,0.3-2.5MM² |
| Color | Black/Blue |
| Length | Optional |
| Voltage Rating | AC300V |
| Current Rating | 1A~20A |
| Times Of Plug | 500 |
| Withstand Voltage | 1.5KV |
| Temperature Rating | —40~+105℃ |
| Waterproof Level | IP68/IP67 |
| Max Cable OD | 11mm |
| Pin Numbers | 2-22 wires |
| Certifications | CE/UL/TUV/ROHS |
| Application |
Our products are widely used in LED lighting, Flexible strip outdoor display, electrical equipment, automation machines, electrical vehicle and etc... |
To Be Your The Best Connection Expert
1) IP67 waterproof in locked condition with ISO9001 management under efficient service
2) Provide free samples within 3 working days if it is normal product with existing tooling
3) Effective communication and rapid response
4) Early design-in capability,OEM, ODM are available
5) Globalization, localization of operation and management

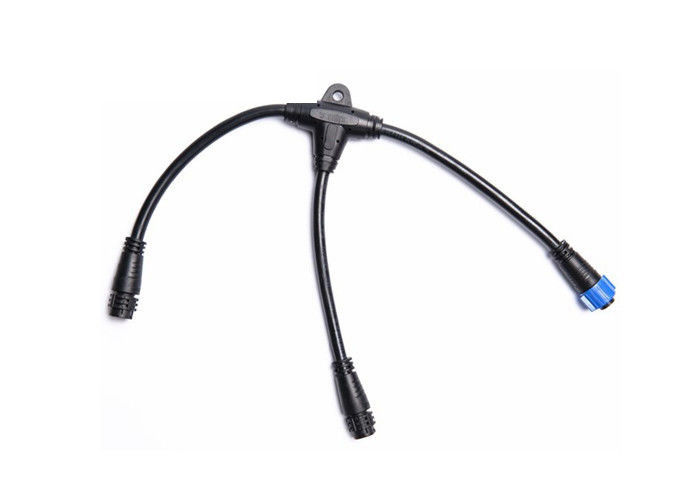

Product Image
