Place of Origin:
China
Certification:
UL,TUV,CE,ROHS,CQC

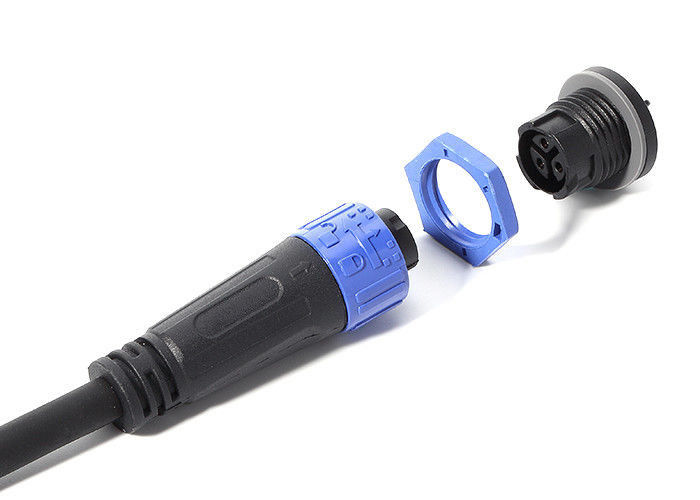

M16 10Amps 3 Poles Cable Connector , Waterproof Underground Cable Connector
Product description
Overmolded cable connector is a high end connection solution, cable length and size are depended by your application, we could customized it for you, different types connector are available, such as panel mount, cable to cable, connector without cable etc.
Push locking and screw locking are optional.
1. Multi-pins connector for different industrial demands
2. High quality outer case,more fire safety,stable, compression, anti-explosion and anti-deformation
3. Gold-plated contact, high performance of corrosion resistance and electrical
4. Conductivity effectively deal with temperature rise.
5. IP67 waterproof level.
6. Rated current : 10Amps
7. Long service life
Technical data:
| Connection way: | Overmolded cable connector |
| Cores No.: | 2pin,3pin,4pin and multipin are available |
| Connector type : | Push locking connector |
| Waterproof level: |
IP67 |
| Cable specification: | 22AWG-18AWG |
| Cable diameter range: | 4.5mm-11mm |
| Rated current (A): | 10A |
| Operating voltage (AC.V.rms): | 300V |
| Withstand voltage (AC.V)1min: | 1500V |
| Contact resistance: | <5mΩ |
| Insulation resistance: | >500MΩ |
Material:
| Shell and insulated parts: | High performance engineering plastics |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
Application fields:
