Place of Origin:
China
Certification:
UL,TUV,CE,ROHS,CQC

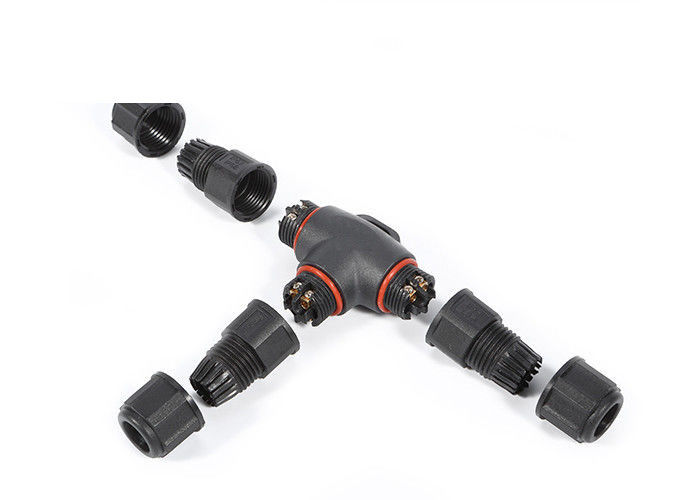

Screw Fixing IP68 Electric Waterproof Connectors For Cable To Cable Connection
Product description
IP68 screw fixing waterproof connector is a very simple connector for power cable or wire extension, just need to screw the wire on terminal and tighten it, easy to install and operate, save your time and cost. Screw terminal connector supports 2.5sqmm cable size max with 20Amps, could be a nice option for you.
1. 2,3,4poles for different industrial demands
2. High quality outer case,more fire safety,stable, compression, anti-explosion and anti-deformation
3. Gold-plated contact, high performance of corrosion resistance and electrical
4. Conductivity effectively deal with temperature rise.
5. IP68 waterproof level.
6. Rated current : 20Amps
Technical data:
| Cores No.: | 2pin,3pin,4pin are available |
| Connector type : | Screw fixing connector |
| Waterproof level: |
IP68 |
| Cable specification: | 20AWG-12AWG |
| Cable diameter range: | 4.5mm-12mm |
| Contact diameter*No. | Φ1.0-Φ2.4 |
| Rated current (A): | 20A |
| Operating voltage (AC.V.rms): | 500V |
| Withstand voltage (AC.V)1min: | 1500V |
| Contact resistance: | <5mΩ |
| Insulation resistance: | >500MΩ |
Material:
| Shell and insulated parts: | High performance engineering plastics |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
Application fields:
| Stage equipment | The smart grid | LED lighting |
| Medical equipment | Battery charing | Automation |
| Solar energy equipment | Ship equipment | Agriculture |
| Electric power equipment | Vehicle equipment | Ebike/motorcycle |
| Communications equipment | LED display | Transportation |
