Place of Origin:
Shenzhen China
Certification:
UL , TUV , CE ,CQC, ROHS
Production

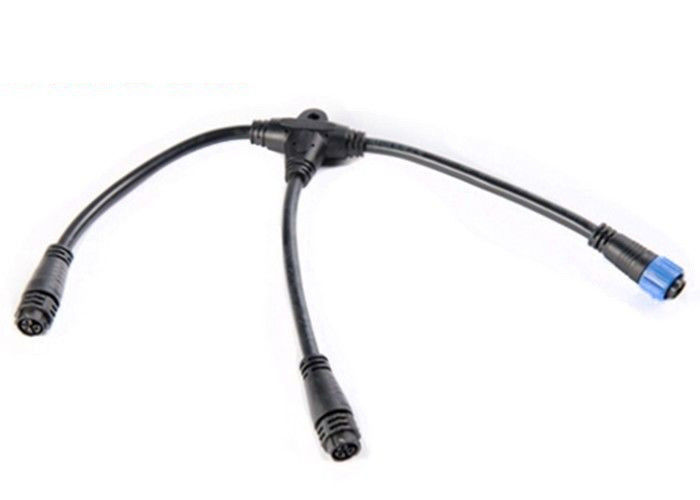

1. 3 Way waterproof cable connector connect with 3pcs cable
2. 3Pcs cable connector connect with 3pcs connector
3. Cable material can be rubber , pvc , nylon , or other special cable
4. Current : Max 20A
Application
Specific Datasheet
| Name | Push Locking T connector | ||
| Number of contacts | 2 | 3 | 4 |
| Current/voltage rating | 20A 300V | 15A 300V | |
| Protection level | IP67 | ||
| Withstanding voltage | 1500V | 1000V | |
| Cable Specification | 15mm-2.5mm2(20-14AWG) | 0.5mm-1.5mm2(20-16AWG) | |
| Diameter range | φ4.5-φ11 | ||
| Operating temperature | -40℃ - 105 ℃ | ||
| Connecting mode | Push Locking | ||
| Shell , insulating parts | High - performance engineering plastics | ||
| Material of copper needles | Copper alloy | ||
| Flame - resistant rating | UL94 - V0 | ||
| Wiring | Soldering / Welding | ||
| Color of locking | bule / yellow / black | ||
| Certification | TUV , CE , CQC | ||
FAQ
You are interested in our connector .
Can you provide the samples ?
Yes , we can provide sample for quality test .
Can you make the customization product ?
Yes , we accept custom-made connector , there will be a mold fee you should pay for .
How about the delivery time ?
For samples , about 3days ; About bulk order , about 3-5 days
