Place of Origin:
China
Certification:
TUV, UL, 3C, CE, ROHS, ISO90001

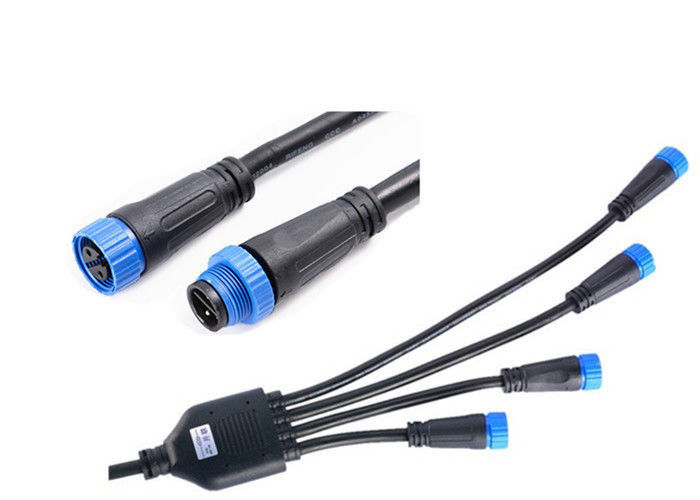

2 Pin 4 Way Y Shape Waterproof Cable Connector Male Female For LED Equipment
Basic feature of Y shape 1 in 4 out waterproof cable connector IP68:
1. Electrical waterproof cable connector.
2. Screw locking style,easy to assemble.
3. 2pin, 3pin, 4pin, 5 pin are available, 2-7 branch are available.
4. The max. of cable diameter is 9.0 mm.
5. Any length of the cable is available and welcome.
6. Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.
The specifiction of 2 pin waterproof circular connector
| Current rating | 10A |
| Operating voltage | 300V |
| Withstand voltage | 1500V |
| Insulation resistance | >500MΩ |
| Durability | ≥1500 mating&unmating cycles |
| Temperature rating | -40°C~105°C |
| Method of connecting cable | Solder |
| Prevent the combustion level | UL94-V0 |
| Material | |
| Shell&insulated parts | High performance engineering plastics |
| Contact pin | Copper alloy(gold-plated) |
| Spring | Stainless steel |
Application:
Our waterproof circular connector are widely used in LED lighting,outdoor display,electrical equipment, automation machines,LED panel and etc.
Electric power equipment - Vehicle equipment.
Communications equipment - Heavy machinery.
FAQ
Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Connector and Contact Gender
* Confirm Assembly style
* Confirm Mating style ( series or parallel)
* Confirm Cable OD size
* Confirm Cable Length and Material.
Q. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q: Do you have a guarantee of your product quality?
A: Yes, we provide warranty for one year.
