Place of Origin:
China
Certification:
ISO9001, SGS, Rohs, Reach

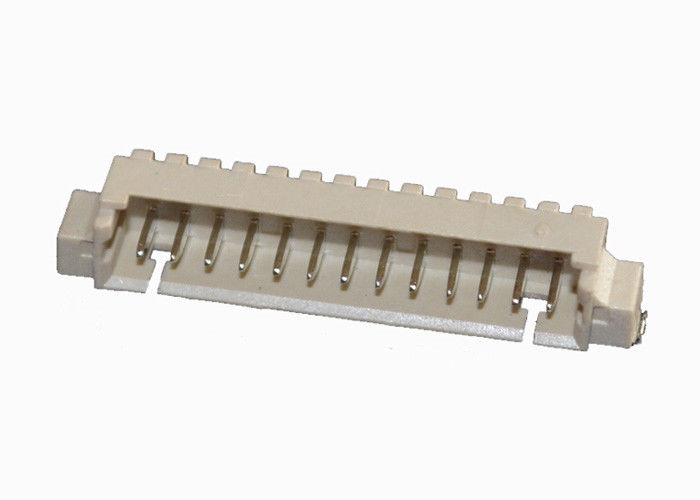

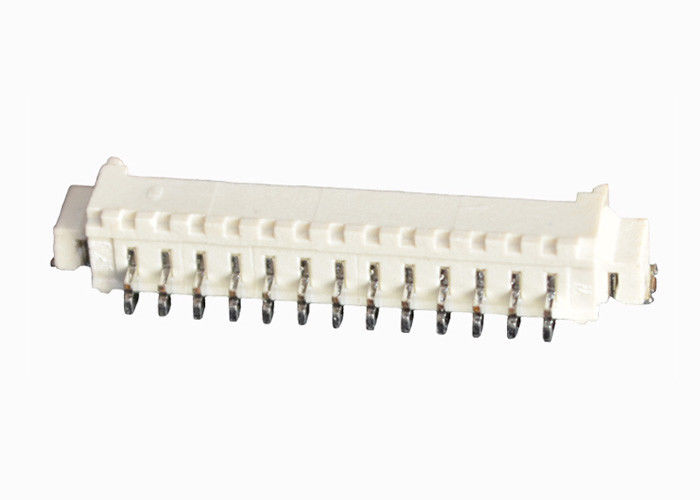

Male Female Housing Wafer Connector 12 Pin PA66 Through Hole Mounting Type
Description
1. The insulation resistance is the index to measure the insulation performance between the contacts of electrical connector and between the contacts and the shell, with the order of magnitude ranging from hundreds of megohm to gigaohm.
2. Electrical connector with high contact resistance shall have low and stable contact resistance. The contact resistance of the connector varies from a few milliohms to tens of milliohms.
3. Electrical strength, or voltage and dielectric withstand voltage, is the ability to withstand rated test voltage between connector contacts or between contacts and shell.
4. Other electrical performance.
| Current Rating | 2.0 AMP |
| Contact Resistance | 20 mΩ Max |
| Withstand Voltage | 500 V AC/DC |
| Insulation Resistance | 1000MΩ Min |
| Operation Temperature | -40℃ to 105℃ |
| Contact Material | Coppy Alloy |
| Products Name | Female Header Connector |
| Pitch | 2.00mm(0.079'') |
| Mounting Type | Through Hole |
| Contact Plating | Au over Ni |
| Insulator Material | PA6T+30%GF(UL94V-0) |
Packing & Shipping
1. Housing: bag /SMT Wafer:tape and reel/terminal:tape and reel .Normally,we use the carton with good quality to put all goods in it in case any damage during the delivery.
2. The way of shipment : by sea, by air, or express such as DHL/TNT/UPS etc.
3. Delivery Time: normally 3~7wroking dasy. For urgent orders ,we can shorten the delivery time accordingly.
Payment
1. We can accept T/T, L/C, Western Union, and Money Gram, you can choose the way you like.
2. Please make sure that you have completed all the detailed information like contact person, address, zip code, and telephone number when filling in your information.
Delivery Time
3 -7 days after receiving your payment(according to your quantity).
Feedback
Buyer’s early confirmation will be highly appreciated after receiving the goods.
Because your feedback is vital to our business’s development, we sincerely invite you to leave positive feedback for us, if you are satisfied with our products and services.
What we can do
1. All of our products will be 100% inspected before shipment.
2. We can design products according to customer demand.
3. Support imprint your logo on products.
