Place of Origin:
China
Certification:
ISO9001, SGS, Rohs, Reach

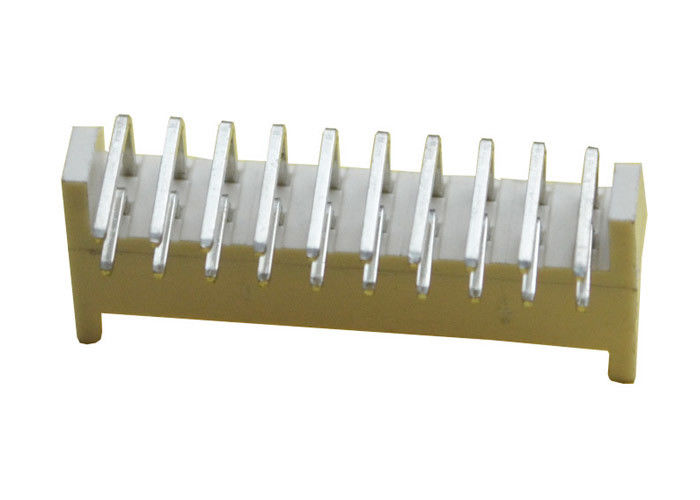

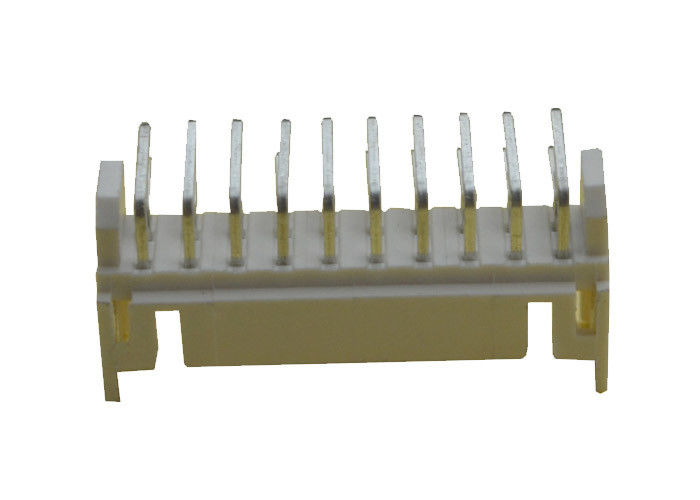

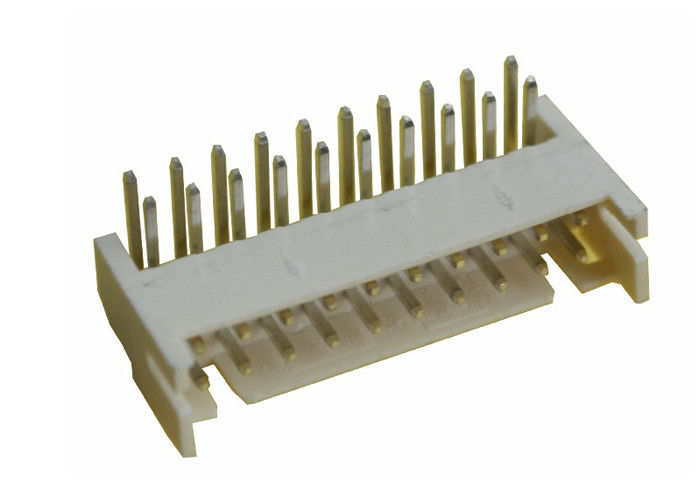

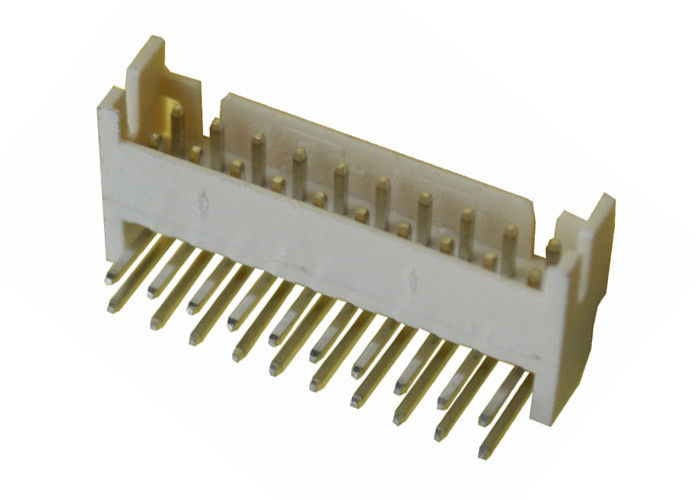

Beige 20 Pin Wire To Board Header 2.0mm Pitch Right Angle DIP Type Brass
| Name | Wafer Connector |
| Pitch | 2.0mm |
| Type | DIP type |
| Insulator Color | Beige |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 3A |
| Contact Resistance(max) | 4m ohm Max |
| Operating Voltage | 60V AC/DC |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
Product feature
1. The insulation resistance is the index to measure the insulation performance between the contacts of electrical connector and between the contacts and the shell, with the order of magnitude ranging from hundreds of megohm to gigaohm.
2. Electrical connector with high contact resistance shall have low and stable contact resistance. The contact resistance of the connector varies from a few milliohms to tens of milliohms.
3. Electrical strength, or voltage and dielectric withstand voltage, is the ability to withstand rated test voltage between connector contacts or between contacts and shell.
4. Other electrical performance.
Product Application
The main supporting fields of wafer connector are transportation, communication, network, it, medical treatment, home appliances, etc.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Which payment can be accepted?
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
Q: If I don't have any drawings, can you still quote my product?
A: Yes, just provide as many details as possible about your product and quoting department can get started on your quote. As an added service, our qualified engineering staff can produce drawings.
Why choose US?
1. IT has more than 10 years experiences in the electronic connectors area.
2. The goods with good quality and service are sold to more than 70 countries.
3. More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4. One of the biggest electronic connectors supplier in the China mainland.
Send your inquiry directly to us
