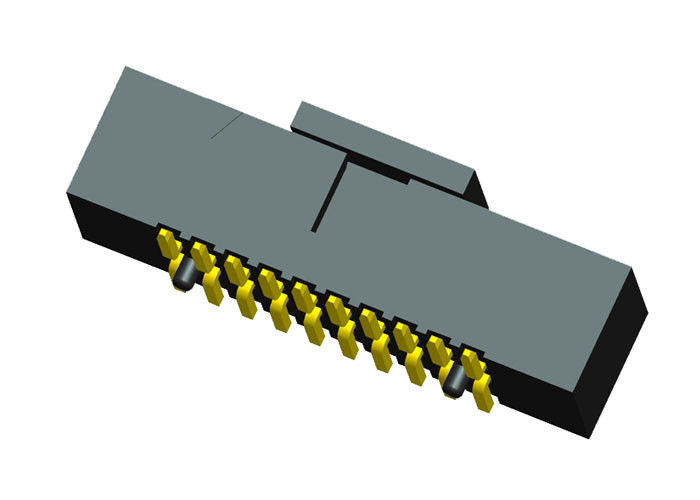

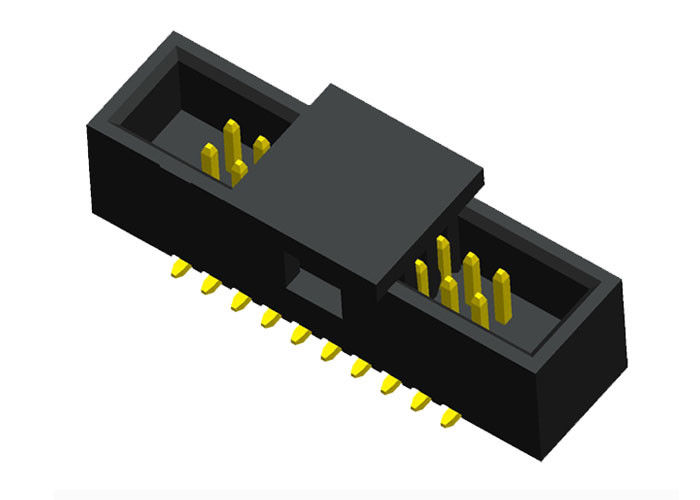

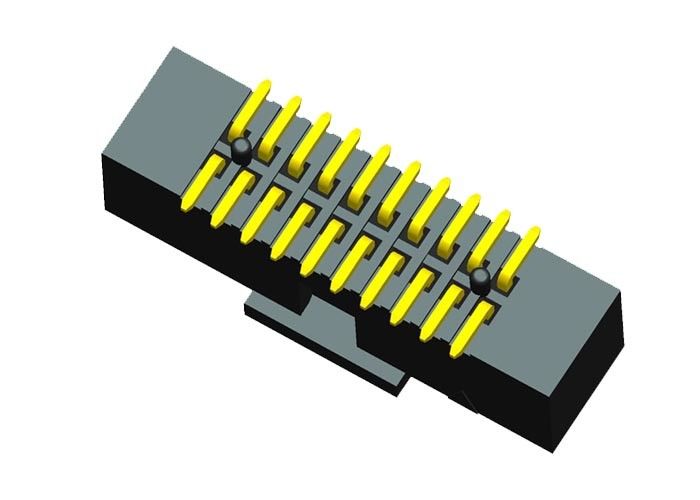

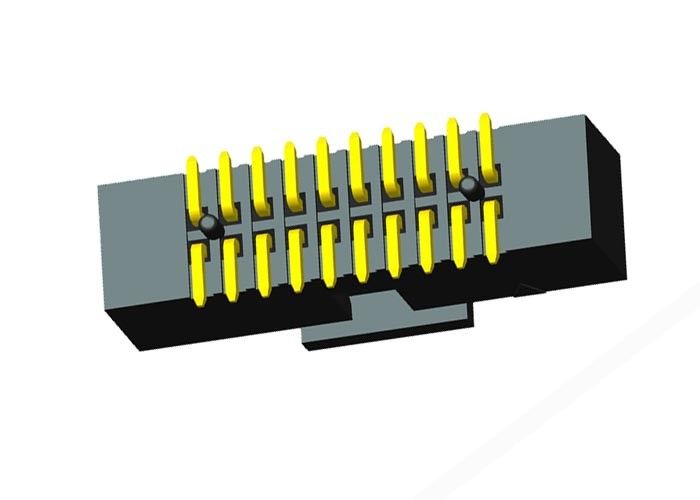

SMT CAP Type Box Header Connector 1.27mm Pitch Gold Flash Contact Plating
Description
1. Box header connector is usually composed of square plastic socket and several square pins arranged in order. The difference between the simple ox connector and ox horn connector is that the simple ox horn has removed the clasps on both sides.
2. Box header connector is welded on the PCB, it connects the IDC cable of corresponding specifications, and then forms the circuit connection mode that the designer needs to achieve with other circuits.
3. It is usually used to transmit control signals and weak current.
|
Current Rating |
1.0AMP |
|
Contact Resistance |
30mΩ Max |
|
Withstand Voltage |
500V AC/DC |
|
Insulation Resistance |
1000mΩ Min |
| Operation Temperature | ﹣40℃ to +105℃ |
|
Contact Material |
Brass |
|
Contact Plating |
Au or Sn over Ni |
|
Insulator Material |
LCP +30％GF( UL94V-0 ) |
Category
1. According to the spacing: 1.0mm, 1.27mm, 2.0mm, 2.54mm.
2. No. of pins: 2~80 pins.
3. According to the height and quantity of plastic (such as single plastic, double plastic, three plastic, etc.).
4. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);
5. According to whether it needs to be increased and whether it needs to be divided with positioning columns, there are two kinds of positioning columns: one is the internal positioning column, the other is the ear positioning column.
