Place of Origin:
China
Certification:
ISO9001, SGS, Rohs, Reach

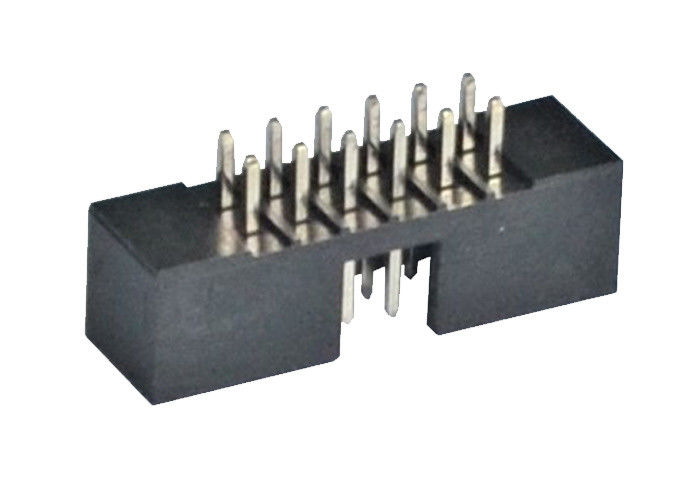

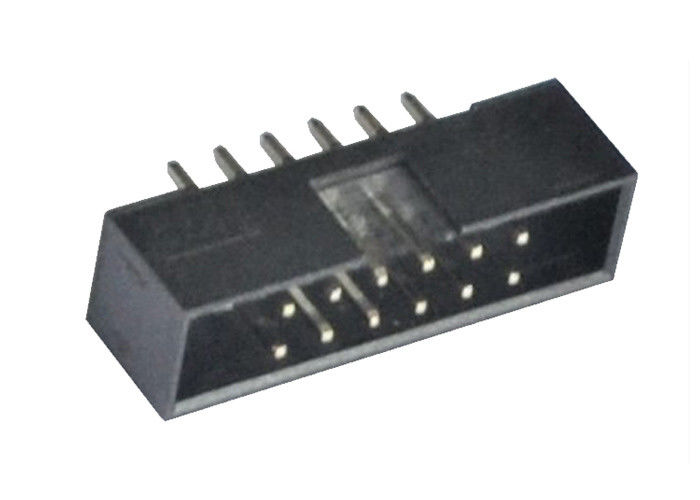

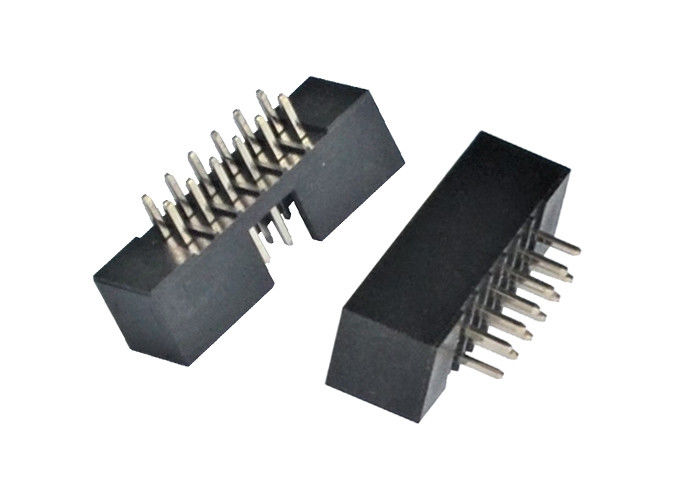

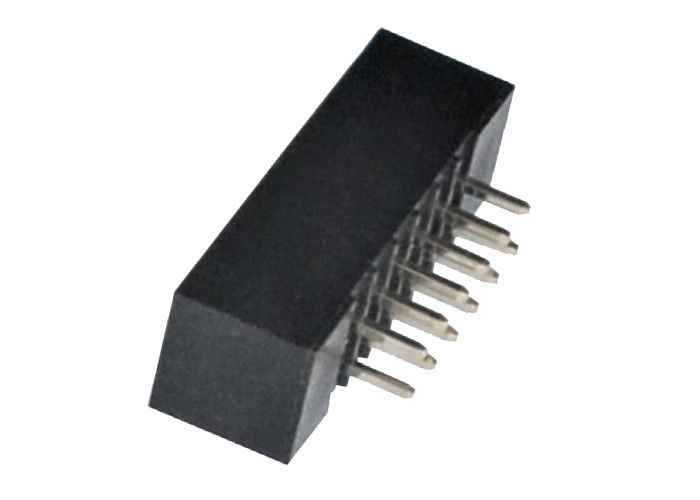

Straight IDC PCB Box Header Connector 180 Degree 2.0mm Pitch 2x12 Pin Socket
Description
1. Box header connector is usually composed of square plastic socket and several square pins arranged in order. The difference between the simple ox connector and ox horn connector is that the simple ox horn has removed the clasps on both sides.
2. Box header connector is welded on the PCB, it connects the IDC cable of corresponding specifications, and then forms the circuit connection mode that the designer needs to achieve with other circuits.
3. It is usually used to transmit control signals and weak current.
| Products Name | Box Header Connector/Wire to Board Connector |
| Pitch | 2.0mm |
| Color | Black/Blue |
| Insulator Material | PBT+30%GF UL94V-0 |
| Contact Material | Brass |
| Pin Available | 2Pins to 100Pins |
| Current Rating | 3.0AMP |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 500V AC/DC |
| Insulation Resistance | 1000MΩ |
| Operation Temperature | -40℃ to +105℃ |
| Contact Plating | Au Over Ni |
| Mounting Type | Surface Mount/SMT |
| Termination | Solder |
| Orientation | Horizontal |
| Soldering Temperature | 260℃ for 10 Seconds |
Product Application
Box header widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team.
