Place of Origin:
China
Certification:
ISO9001, SGS, Rohs, Reach

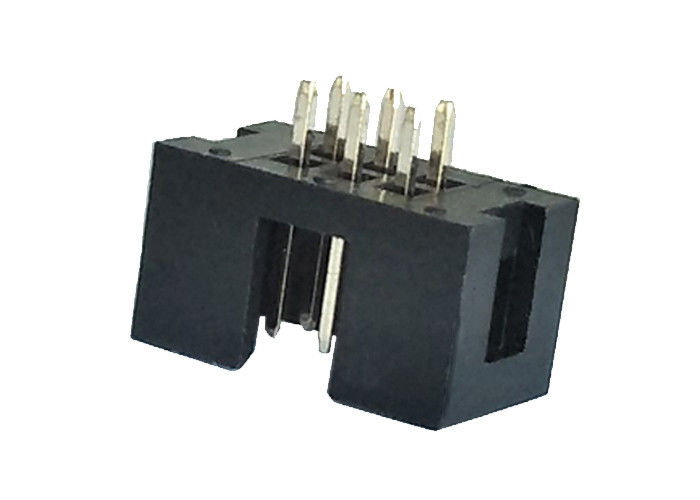

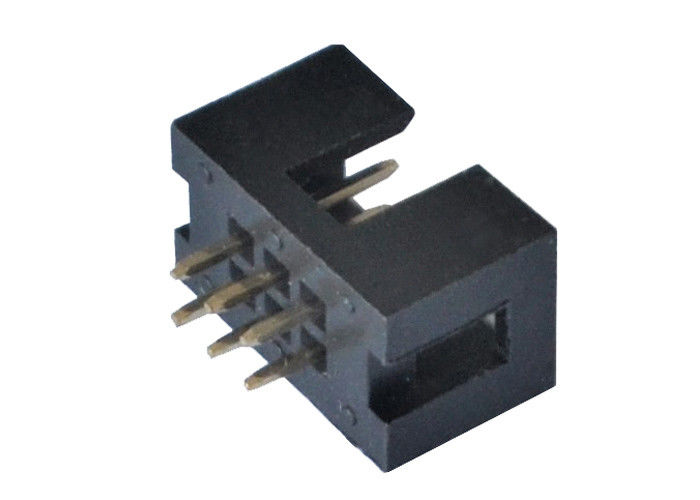

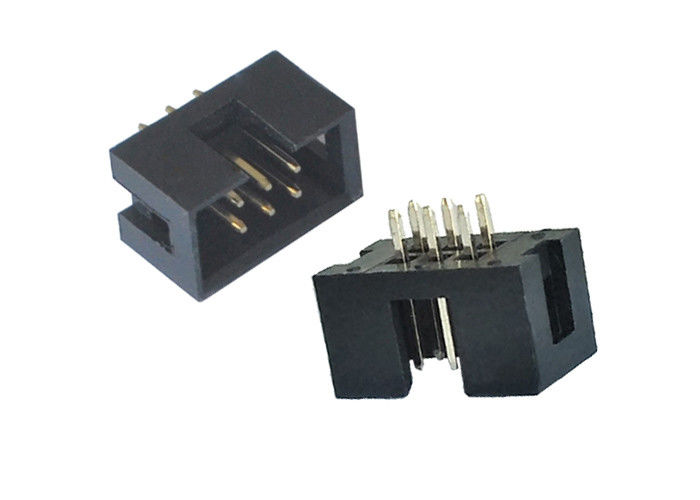

180 Degree Box Header Connector DIP 2.54mm Pitch 6 Pin Straight Type
|
Current Rating |
3.0AMP |
|
Contact Resistance |
30mΩ Max |
|
Withstand Voltage |
500V AC/DC |
|
Insulation Resistance |
1000mΩ Min |
|
Operation Temperature |
-40℃ to +105℃ |
|
Contact Material |
Brass |
|
Contact Plating |
Au or Sn over Ni |
|
Insulator Material |
LCP +30％GF( UL94V-0 ) |
|
Product name: Box header connector |
||
|
1. Product features: high temperature resistant to high voltage electrical conductivity. |
||
|
2. Its function is to act as a bridge between the blocked or isolated circuits, and to take on the task of current or signal transmission. |
||
|
3. Scope of application: Mainly suitable for data communication and electronic equipment and welding on the PCB board, connected to the corresponding specification of IDC ribbon cable and the other circuit designers need to circuit. And if current usually transmission control signal. |
Packaging Details:
Tube package, Reel package,Box package, PE Bag package
Shipment ways:
1.Sample order: DHL,FEDEX,UPS,TNT,EMS,etc.
2.Bulk order: Shipping by sea or air.
FAQ
Q: Can I get some samples?
A: Yes, sample order is available, some samples are free. and it will be freight collect payment.
Q : How long is your lead time?
A: Normally, our lead time is 3-7 days according to different products.
Q: How do you guarantee my goods right?
A: Order will be arranged exactly as requested, we will doubly check the packing and qty before delivering out also we will take you photos if required or necessary.
Q: How can we get a quote?
A: Please offer the specification of the product, such as part No. , quantity, drawing, etc.
Q: Why choose our company?
1. RealRun has more than 10 years experiences in the electronic connectors area.
2. The goods with good quality and service are sold to more than 70 countries.
3. More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4. One of the biggest electronic connectors supplier in the China mainland.
