Place of Origin:
Guangdong, China (Mainland)
Certification:
yes
1.Product Datasheet information:

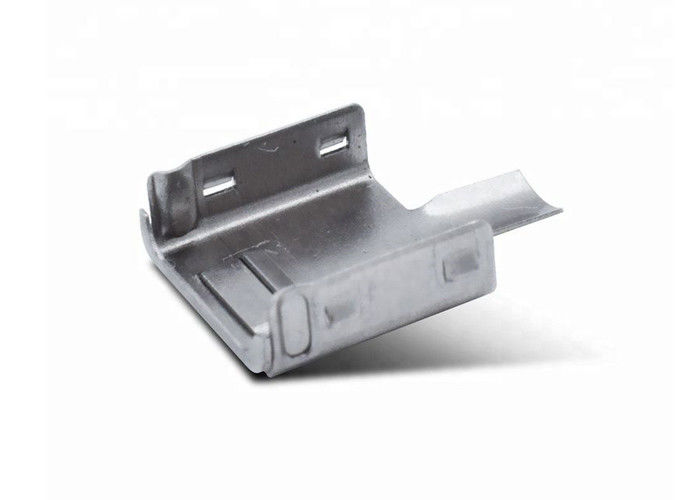

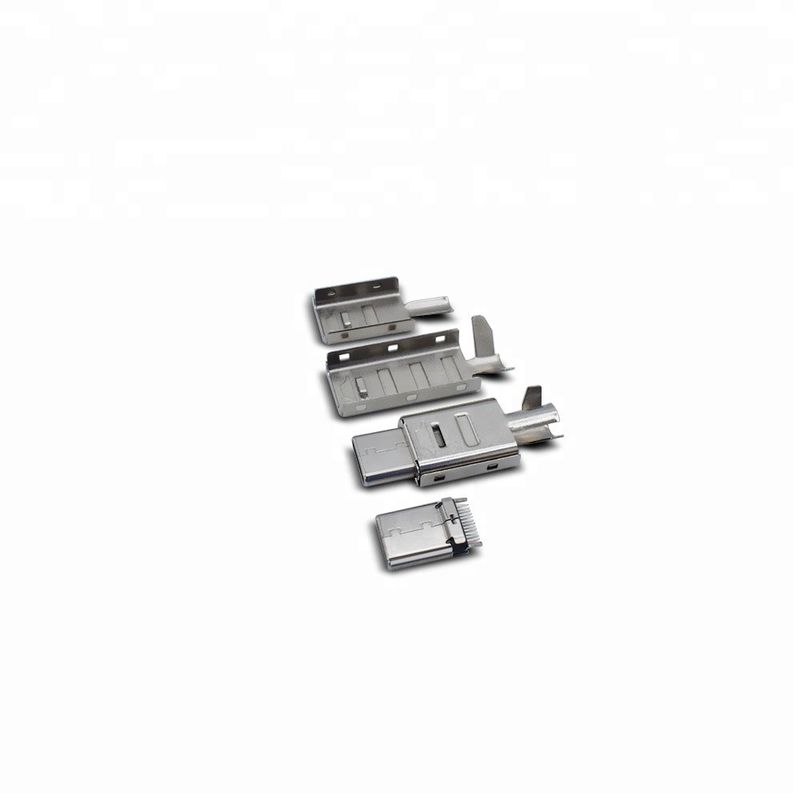

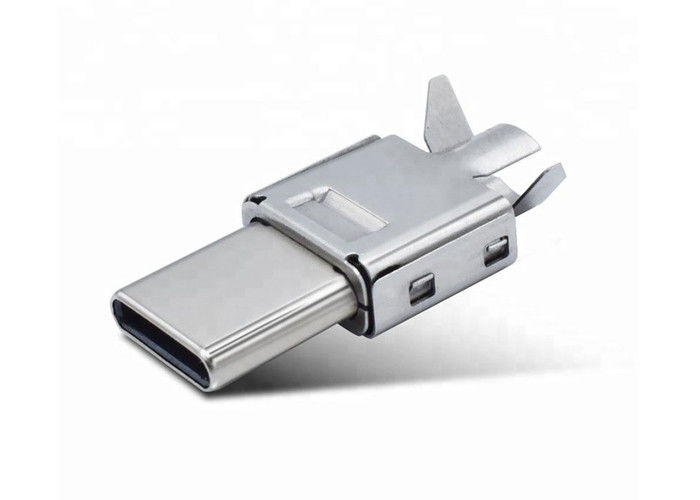

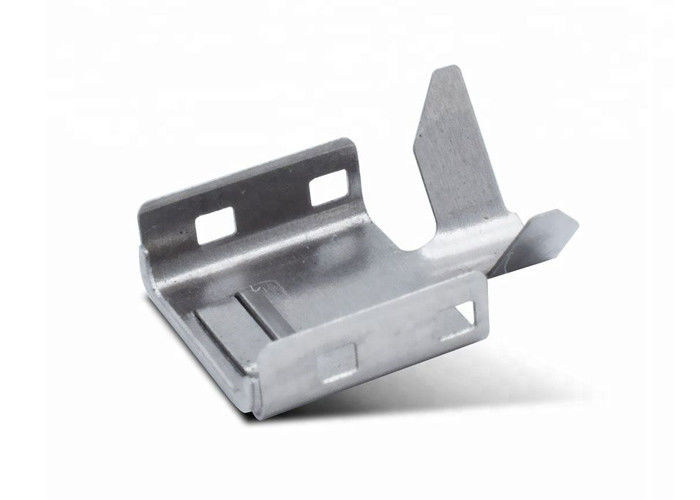

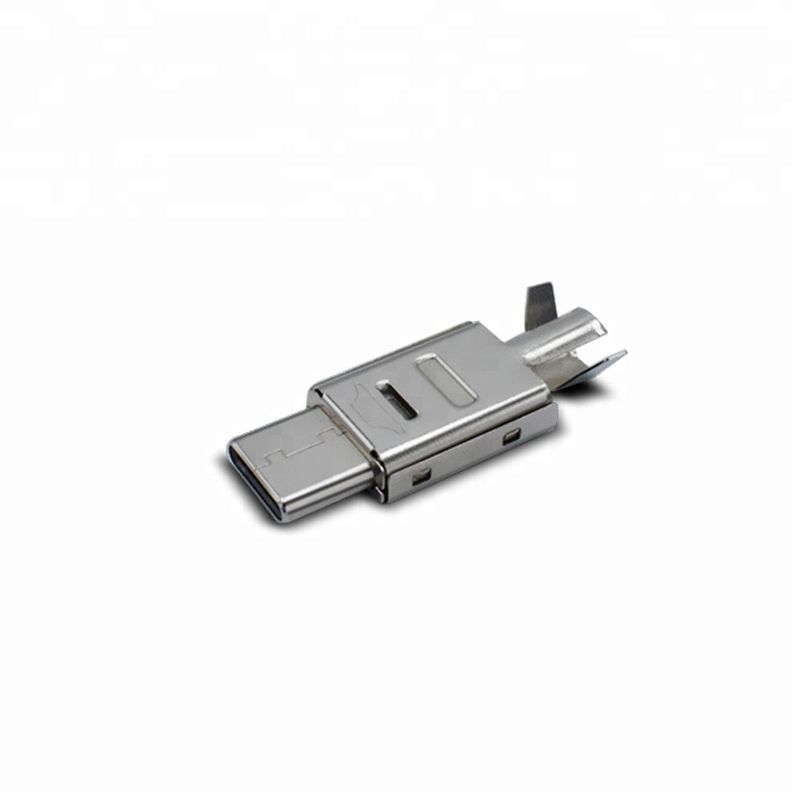

| Product Name | USB C male connector HOUSE | Type | Solder usb cable |
| Shell | Stainless Steel | Rated current | 0 |
| Terminal | can with gold plating | Application | Mobile phone& device |
| Fuction | protection | Durability | 10000-15000 times |
Materials:
Body: LCP, UL94V-0 rated. color: balck
Shield: Stainless Steel
Plating: gold plating over nickel on contact area
Contact: brass
Electrical:
Connector type: micro usb 4pin connector
Rated current: 2amp
Rated voltage: 125VAC
Insulation resistance: 500MΩmin
Contact resistance: 30MΩmax
Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min
Mechanical:
Operation voltage: 40V DC max
Current rating: 0.5 Ampere per contact
Contact resistance: 30m Ω max
Insulation resistance: 2000m Ω min
Dielectric withstanding voltage: 1200V AC
Operating temperature: -20°c to + 85°c
2.Lead Time:
| 1-10000pcs | 1-3days |
| >1000000pcs | 3-7days |
| >10000000pcs | To be negotiated |
3.Drawing
4 Our Services:
Delivery on time!
Provide high quality and the best price!
Provide first class service after sale!
Sample free for resonble quantity!
All plug,jack and cable can be custom-made according to your request on desigh, size or materials!
CHOOSEUS--YOU ARE RIGHT !
1.IT has a professional research department & excellent team
2.OUR is a supplier & manufacturer with the perfect quality & competitive price
3.Our company specialized in micro,type c and usb for 7 years
4.Provide sample for free
5.Small order is accepted, for the more order you place ,the more discount you will get
6.ODM &OEM are available
7.you could return if the products has any problem,12 month warranty
Q: Is IT a manufacturer or trading company?
A: OUR has its own factory,and also do some trading for the items we do not produce.We are competitive even for the trading items,as we have a strong sourcing team who concern about the quality.
Q: What's the normal lead time?
A: For different items,we have different lead time,normally it is 7-15 days.
Q: Can we get samples for your products?
A: Yes,samples are available,but for some items,sample cost need to be charged,which can be returned after your formal order.
Q: What's your payment terms?
A: T/T,sight L/C,Western Union,Paypal or chinese bank.
Q: I am new buyer ,how can i buy from you?
A: You tell us what you need ,we send you offer,if you think the offer is good,our sales send you company invoice including all details such as payment terms ect. ,then we ship to you.
