Place of Origin:
China
Certification:
CE ROHS
Features:

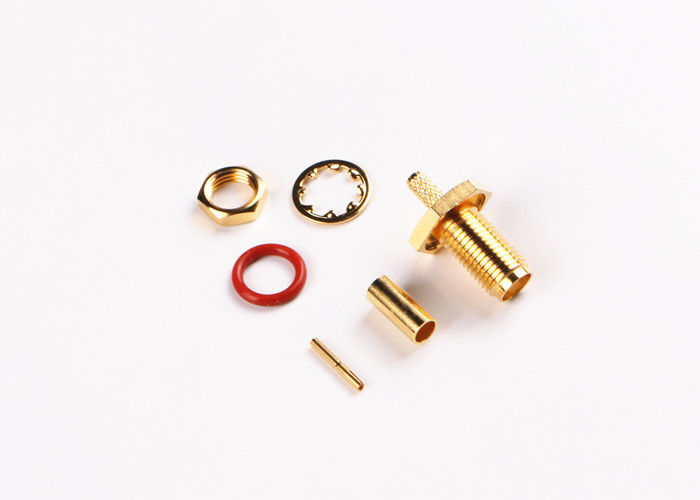

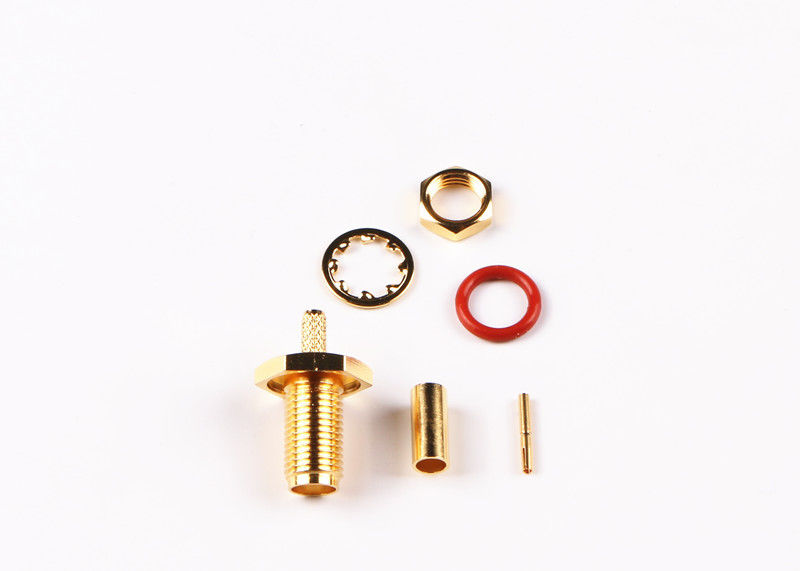

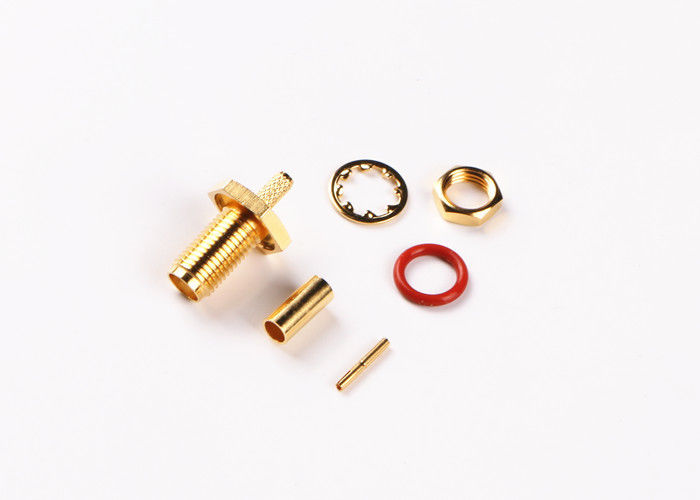

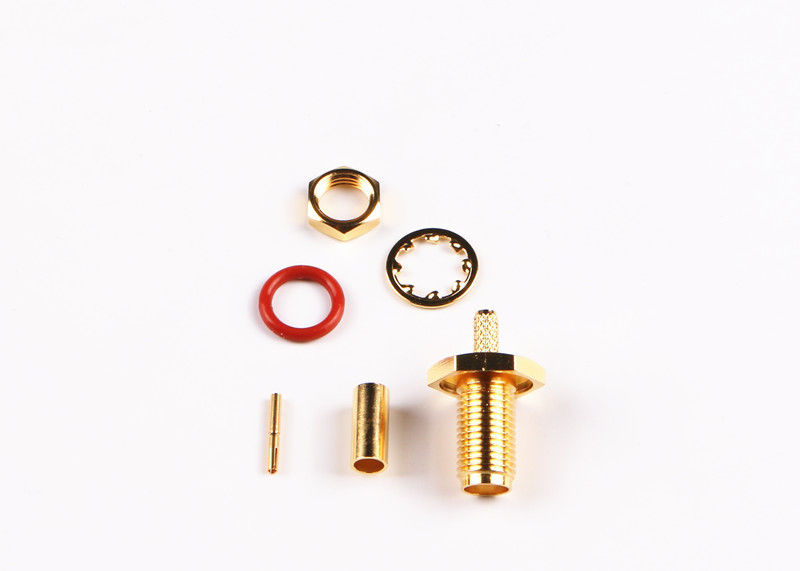

TYPE SMA is one kind of RF coaxial connectors that is widely applied, with small sized thread coupling. Characteristic impedance is 50ohm. The characteristic of connectors is in wide frequency range, excellent performance, high reliability. They are used in connection with RF cable or microstrip line in RF circuit of the WLAN system, controlled program, microwave equipment and the digital communication system.The frequency can be up to 18GHz by using semi-rigid or semi-flex cable.
Specification:
| Electrical Characteristics | |||
| Impedance | 50Ω | ||
| Frequency Range | Connect with solf cable DC~12.4GHz | ||
| Connect with semi-rigid cable DC~18GHz | |||
| Rated Voltage | 335VRMS | ||
| Dielectrics Voltage-resistance | 1000VRMS | ||
| Insulation Resistance | ≥5000MΩ | ||
| Center Resistance | Center Conductor | ≤3.0mΩ | |
| Outer Conductor | ≤2.0mΩ | ||
| VSWR | ≤1.3 | ||
| Material & Mechanical Characteristics | |||
| Center Conductor | Male | Brass Gold plated | |
| Female | Sn-P Bronze Gold plated | ||
| Elastic Contact | Beryllium bronze Nickel plated | ||
| Shell and other Metal Parts | Brass Nickel plated | ||
| Stainless Passivation | |||
| Crimping Sleeve | Brass Nickel plated | ||
| Insulators | PTFE | ||
| Sealing Ring | Silicone Rubber | ||
| Durability | 500 cycles | ||
| Tightening torque of connection | 0.79－1.13N .m | ||
Application:
* Aerospace
* Broadband
* Instrumentation
* Phased array antennas
* Telecommunications
* Board-to-board interconnect
More Detail:
Product Cataloge:
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
Send your inquiry directly to us
